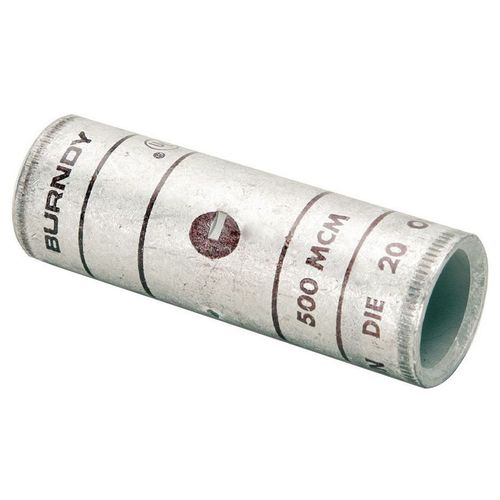

600 V To 35 Kv, 500 Kcmil, Brown, Copper, Standard Barrel w/ Chamfered, Compression Cable Splice, YS34L
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$52.56 each
In Stock
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
- Compression Cable Splice
- Type Butt with Centre Wire Stop
- Voltage Rating 600 V to 35 KV
- Conductor Size 500 KCMIL
- Conductor Material Copper
- Color Code Brown
- Barrel Type Standard with Chamfered
- Length 3.15 Inch
- Outer Diameter 1.06 Inch
- Body Material Electro-Tin Plated Copper
- Approval UL, CSA
- RoHS Compliant
- Wire Strip Length 1-7/16 Inch
- Die Index 20 or 299
- Temperature Rating 90 Deg C
Specs
–
| Product Type: | Butt Splice |
|---|
