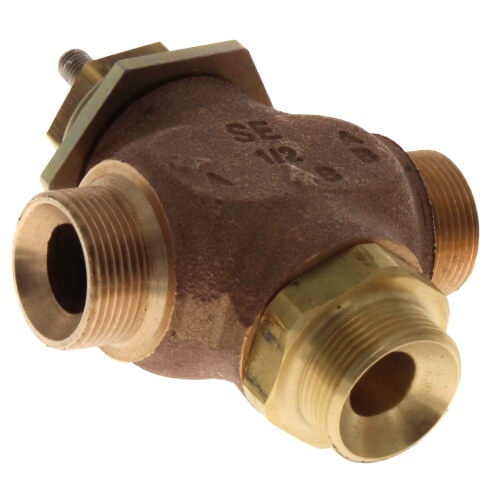

Main product image of 1/2" Union Sweat 3-Way Mixing Valve (2.2 cv)

Hover image to zoom

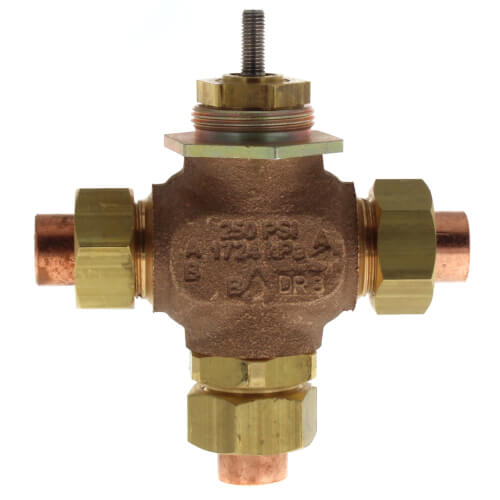

1/2" Union Sweat 3-Way Mixing Valve (2.2 cv)

Name: 1/2" Union Sweat 3-Way Mixing Valve (2.2 cv)
Brand: Barber Colman
SKU: VB-7314-0-4-2
Price: 203.47 USD
Availability: OutOfStock

Brand:

Barber Colman

SKU:

VB-7314-0-4-2

Rating:

(0)

Q&A:

(0)

1/2" Union Sweat 3-Way Mixing Valve (2.2 cv)

Hover image to zoom

VB-7314-0-4-2 has been discontinued

Discontinued February 15, 2026

This product was discontinued by the manufacturer.

MANUALS (2)

Replacement Parts

Suggested Alternative:

1/2" Union Sweat 3-Way Mixing Valve (4.4 cv)

Brand:

Barber Colman

SKU:VB-7314-0-4-4

(0)

VIEW ALTERNATIVE

Product Highlights

–

Sweat Connection

1/2"

2.2 Cv

281°F Max Temp

20°F Min Temp

3-Way

Description

–

VB-7314 series three-way mixing valves control hot or chilled water from 20 to 281°F (-7 to 138°C) in heating or air conditioning systems. These valves must be piped with two inlets ("A" and "B" ports) and one outlet ("AB" port). They are used for two-position or proportional control applications. Valve assemblies require an actuator and a valve linkage that must be purchased separately.

Features

Valve sizes 1/2" to 2"
250 psig pressure rating per ANSI Standards (B16.15-1985) for screwed cast bronze bodies
Spring-loaded TFE packing
Union Sweat End Connections

Specs

–

Flow Capacity (Cv):	2.2
Size:	1/2"
Connection Type:	Sweat
Body Pattern:	3-Way
Application:	Point of Source
Max Temp (F):	281°F
Min Temp (F):	20°F
