Rocket Wireless Fuel Level Monitor

Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

• Don't Run Out Again! Can prevent running out of oil during periods of heavy or unusual usage pattern, even if you have automatic delivery!
• Eliminates the need to go down into the basement or outside to determine oil level. Simply monitor the Receiver LCD from within the comfort of your home!
• Installs in less than 10 minutes!
• More accurate and reliable than a mechanical float gauge
• Suitable for both inside or outside tanks
• Replaceable Lithium cell Transmitter battery lasts over 10 years.
• Multiple receivers can be set up to receive from one transmitter
• The omni-directional Transmitter allows the receiver(s) to be located anywhere within 150 ft of the transmitter.
• Simple DIP switch settings allow one product to work on tanks up to 10 ft (3m) in height.
• Multiple Transmitter/Receiver pairs can be colocated without interfering.
• Automatic recovery following power outage - no need to re-synchronize receiver to transmitter.

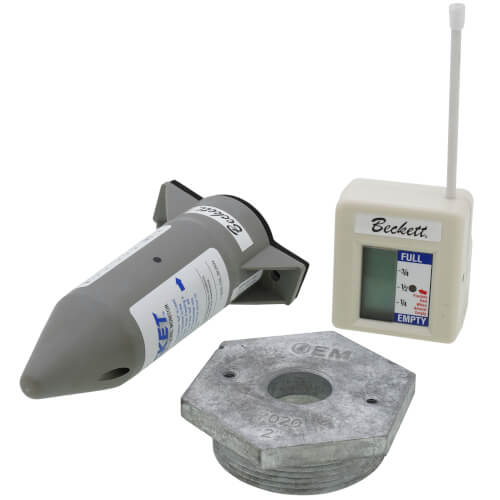

• The Transmitter is mounted in an available opening in the tank and uses ultrasonic technology to measure the fuel level.
• The Receiver plugs directly into a 110v outlet located in a convenient place in your home - usually the kitchen.
• The LCD display on the Receiver displays the oil level as "bars", where each bar represents approximately 10% of the tank's capacity.
• When the level goes below 20%, the fuel oil Nozzle "icon" appears in the LCD display, indicating that it is time to call for fuel delivery. Note: If you have an "automatic delivery" contract with your oil dealer, you should wait until the level drops to about 10% before alerting the dealer to your oil level status.
• When the oil level drops below 10% of the tank's capacity, the red LED will begin flashing continuously and a audible signal will sound once every hour. Call your oil company immediately to schedule a delivery. These warning signals will continue until the first measurement is made following an oil delivery (this could take up to one hour after the delivery).

• Communications Distance: Max of 150 ft (46m)
• Power Supply: Receiver: 110/120 Volts 60Hz, Transmitter: 3 Volt CR2430 Lithium cell
• Power Consumption: Receiver: 2 Watts
• Transmitter Battery Life: 10+ Years
• Wireless Transmission: 914.6 MHz FM
• Regulatory Compliance: FCC Part 15, UL 60335-1
• Testing Laboratory MET - OSHA Approved NRTL
• Environmental Temp: -4 ºF to 140 ºF (-20 ºC to 60 ºC), Humidity: 0-100% (Sealed airtight), Material: Transmitter - PP3317 UV Inhibited
• Dimensions: Receiver: 2"x2.2"x1.4" (50x55x35mm), Transmitter: 5.4"x2.8"x1.6" (138x70x40mm)
• Tank Adapters: 2" NPT (Supplied with product), 1-1/2" and 1-1/4" NPT Special Order
