7556A GeniSys 12VDC Oil Primary Control

Product Update: This item has recently been updated by the manufacturer, and newer versions no longer include wire flag terminals, wire nuts, or a limit jumper. Based on our current inventory, you may receive either the previous or updated version during this transition.

Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

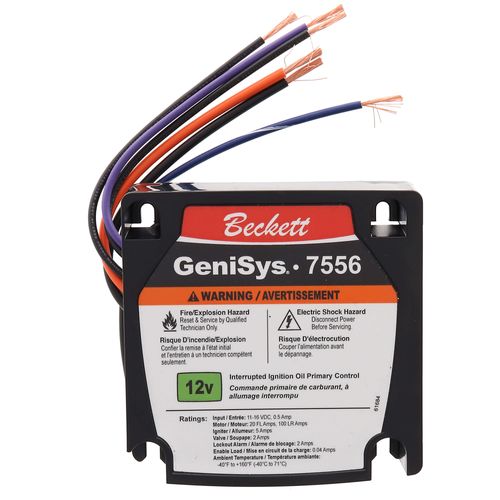

The Beckett GeniSys® 7556 Oil Burner Control is a potted (for high moisture environments) 12 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys® 7556 is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time.

Product Features

• Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat
• Valve-on delay / motor-off delay — field-programmable with Beckett GeniSys® Contractor Tool
• Epoxy potted for moisture resistance
• Welded relay protection with redundant motor relays
• High ambient temperature rating
• Alarm output enables visual or audio indication of flame failure and lock out condition
• Interrupted ignition
• Relight function
• Fused protection
• 15 second lockout time
• Communication port

Inputs

• Voltage: 12 VDC nominal (11 to 16 VDC)
• Current: 160 mA nominal (500 mA max at 16 VDC)
• Enable Load: 40mA at 12 VDC

Outputs

• Motor: 12 VDC, 20 full load amps (FLA), 100 locked rotor amps (LRA)
• Igniter: 12 VDC, 5 A
• Solenoid Valve: 12 VDC, 2 A
• Lockout Alarm: 12 VDC, 2 A

Programed Delays (Changeable with Beckett Contractor Tool)

• Valve On Delay: 0 seconds
• Motor Off Delay: 0 seconds
