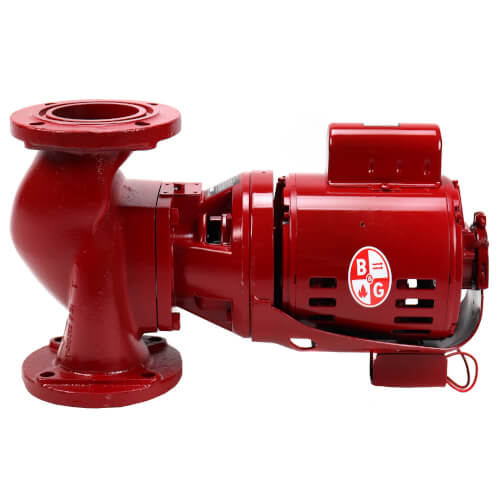

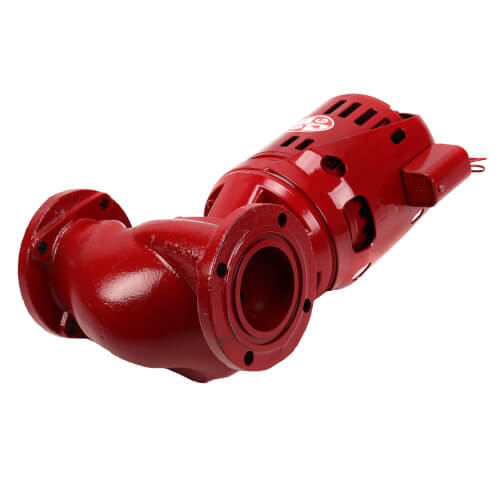

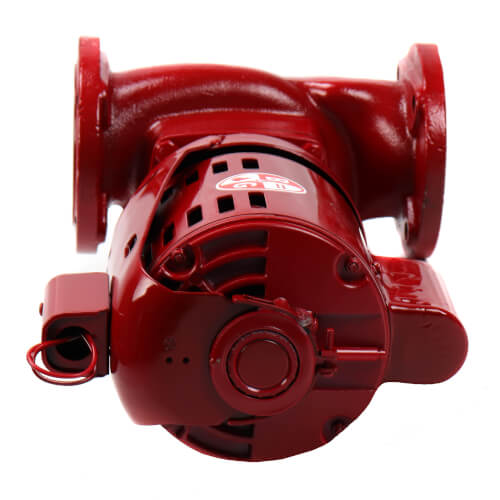

1/4 HP, LD3 Circulator Pump
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,185.19 each
In Stock
Get 2 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/4 HP
Flanged x Flanged Connection
110 MAX GPM
125 MAX PSI
Cast Iron
Description
–
Overview
The Series 100 is a leader in applications such as hydronic heating and domestic hot water circulation, with over 10 million units installed. Series 100's three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Series 100 oil lubricated motor is specifically designed for the Series 100, and its resilient mounting provides quiet, dependable service with minimum annual lubrication. UL and CSA listings are standard. The design of this motor, coupled with its overall hydraulic performance, allows the Series 100 to overcome system related noise caused by valves, fittings, or piping.
Operating Data
The Series 100 is a leader in applications such as hydronic heating and domestic hot water circulation, with over 10 million units installed. Series 100's three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Series 100 oil lubricated motor is specifically designed for the Series 100, and its resilient mounting provides quiet, dependable service with minimum annual lubrication. UL and CSA listings are standard. The design of this motor, coupled with its overall hydraulic performance, allows the Series 100 to overcome system related noise caused by valves, fittings, or piping.
Operating Data
- Maximum working pressure: 125 psi (8.6 bar)
- Maximum operating temperature
- Standard Seal: 225°F (107°C) continuous
- Special Seals: 250°F (121°C) continuous
- Applications: Reliable Circulators for Residential Heating Systems.
Specs
–
| Material: | Cast Iron |
|---|---|
| Amperage: | 3 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 1/4 |
| Connection Size: | 3" |
| Flow Range (GPM): | 0-110 |
| Max Flow (GPM): | 110 |
| Max Head (Ft): | 16 |
| Head Range (ft.): | 2-16 |
| Min Head (Ft): | 2 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 1725 |
| Max Temp (F): | 225°F |
| Connection Type: | Flanged x Flanged |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
9 Replacement Parts
Impeller (Series LD-3, 2-1/2")
SKU: 118676
Bell & GossettSpring Coupler for B&G 100 Booster Pumps
SKU: 1751030
Wal-richMotor (2-1/2", LD-3)
SKU: 111040
Bell & Gossett
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
Be the first to write a review.
Product Q&A
2 Questions2 Questions
Q: What the measurement from flange to flange
Asked by Jake 1 years ago
Add your answer
Verified Reply- SupplyHouseHello Jake, thanks for writing in. The flange to flange measurement for the LD3 is 10".
Was this review helpful to you?
Q: how much oil do i put in and how often do i put it in?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou need to put in 3 drops of oil once a year.
