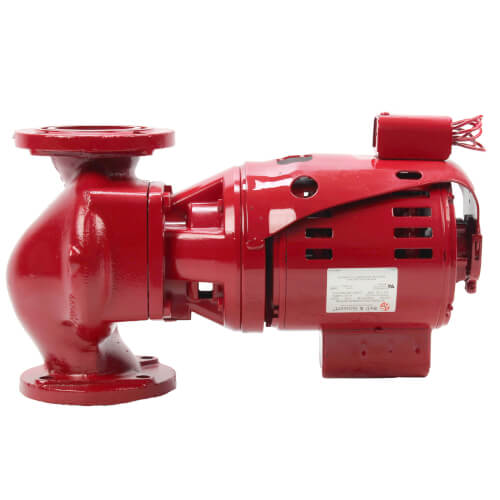

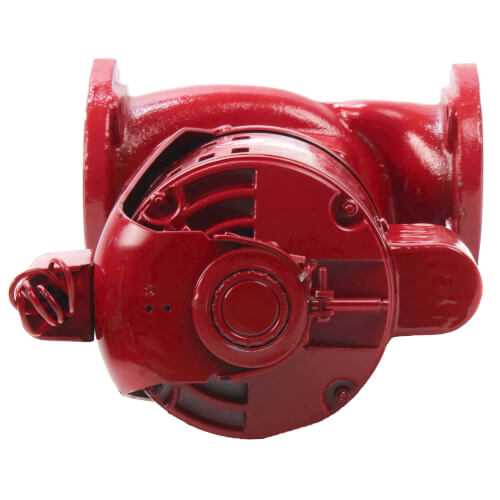

1/3 HP, HD3 Circulator Pump
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 57.54 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V, 115V
1/3 HP
Flanged x Flanged Connection
115 MAX GPM
125 MAX PSI
Cast Iron
Description
–
The Series 100 is a leader in applications such as hydronic heating and domestic hot water circulation, with over 10 million units installed. Series 100's three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Series 100 oil lubricated motor is specifically designed for the Series 100, and its resilient mounting provides quiet, dependable service with minimum annual lubrication. UL and CSA listings are standard. The design of this motor, coupled with its overall hydraulic performance, allows the Series 100 to overcome system related noise caused by valves, fittings, or piping.
- Maximum working pressure: 125 psi (8.6 bar)
- Maximum operating temperature: Standard Seal: 225°F (107°C) continuous / Special Seals: 250°F (121°C) continuous
- Applications: Reliable Circulators for Residential Heating Systems.
Specs
–
| Voltage: | 230V 115V |
|---|---|
| Material: | Cast Iron |
| Amperage: | 4.2/2.1 |
| Application: | Heating |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 1/3 |
| Connection Size: | 3" |
| Max Flow (GPM): | 115 |
| Flow Range (GPM): | 0-115 |
| Head Range (ft.): | 5-19 |
| Max Head (Ft): | 19 |
| Min Head (Ft): | 5 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 1725 |
| Max Temp (F): | 225°F |
| Connection Type: | Flanged x Flanged |
