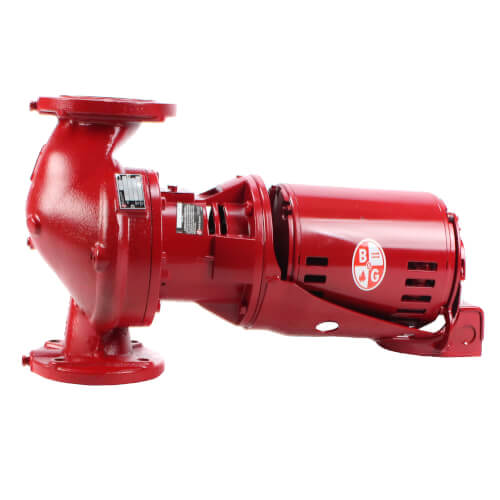

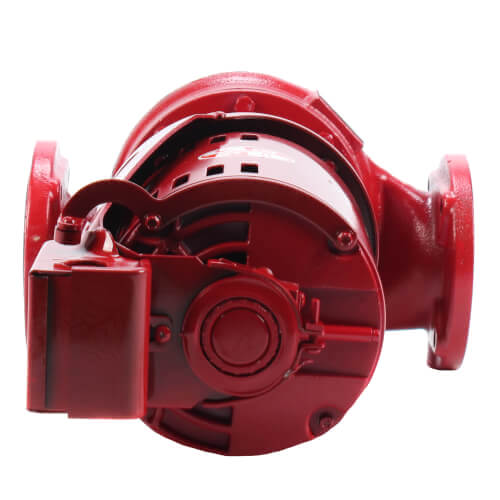

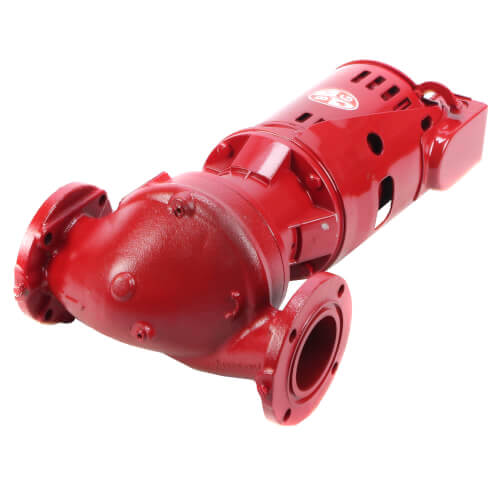

1 HP, PD38S Circulator Pump
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$5,122.33 each
In Stock
Get 1 Tue, Jun 16 - Thu, Jun 18
MANUALS (3)
This item replaces: 105151
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 130 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V, 115V
1 HP
Flanged x Flanged Connection
145 MAX GPM
125 MAX PSI
9.8 Amps
Description
–
Specifications
- Power Rating: 1 HP
- Pump Body Material: Cast Iron
- Voltage Rating: 115/230 Volts
- Phase: Single
- Full Load Current: 13/6.5 Amperes
- Thermal Protection: Auto
- Face: 14 1/2 in.
- Length: 24 in.
- Inlet/Outlet: 3 Inches Flanged
- Best Efficiency Flow @ Head: 100 GPM @ 25 Feet of head
Specs
–
| Amperage: | 9.8 |
|---|---|
| Voltage: | 230V 115V |
| Material: | Cast Iron |
| Application: | Heating |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 1 |
| Connection Size: | 3" |
| Max Flow (GPM): | 145 |
| Flow Range (GPM): | 0-145 |
| Min Head (Ft): | 13 |
| Head Range (ft.): | 13-31 |
| Max Head (Ft): | 31 |
| Hertz: | 60 |
| Phase: | 1 |
| Max Temp (F): | 225°F |
| RPM: | 1725 |
| Connection Type: | Flanged x Flanged |
