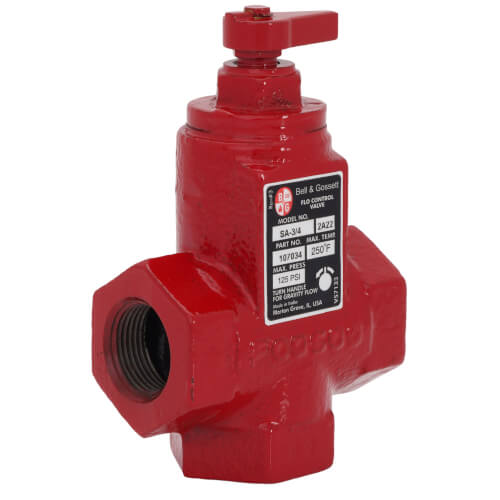

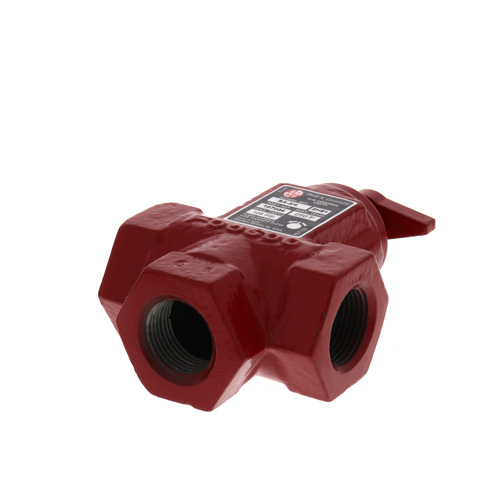

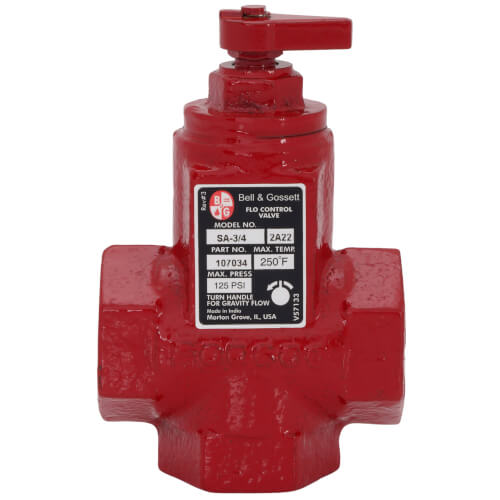

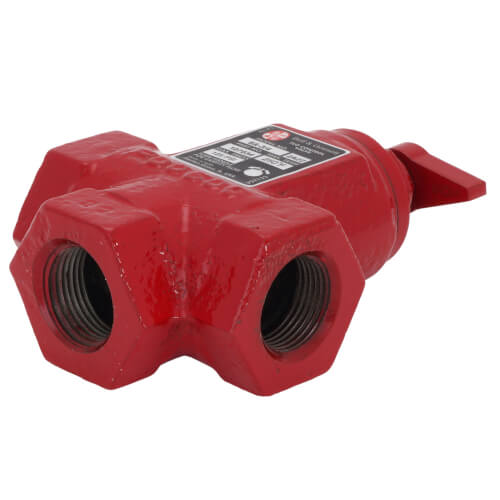

3/4" Straight-Angle Flow Control
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
107034 has been discontinued
Discontinued June 5, 2025
This product was discontinued by the manufacturer.
MANUALS (3)
Product Highlights
–
3/4"
FNPT x FNPT Connection
Iron
Straight-Angle
125 MAX PSI
Vertical
Description
–
The Bell & Gossett straight angle flow control valve accomplishes two things. First the Flo-Control valve acts as a check valve, keeping the system flow from short-circuiting into places where it doesn't belong. Second, and just as important, the Bell and Gossett Flo-Control valve stops hot water from migrating into a zone that's not calling for heat.
Specs
–
| Application: | Flow Control |
|---|---|
| Size: | 3/4" |
| Connection Type: | FNPT x FNPT |
| Material: | Iron |
| Body Pattern: | Straight-Angle |
| Max Pressure (PSI): | 125 |
| Position: | Vertical |
| Temperature Range (F): | 250°F Max |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.75 out of 24 reviews
96% would recommend this product
5 star
88%
4 star
8%
3 star
0%
2 star
0%
1 star
4%
Customer Images
Most Liked Positive Review
Install and relax
Hurricane Sandy survivors will understand the need to have heat that can be rigged to work without electric power (2 weeks for me). With gas heat and this valve, the boiler can be set to manual run, and this valve opened (turn to raise the stem). You can't do that with one-way valves or all-in one pumps. This setup allows gravity circulation in hydronic systems which gives some heat (at reduced capacity) and prevents freezing.
It is a good idea to fiddle with the knob a couple of times each year to keep the packing from seizing up. I've got one of these installed in about 1985 - it still works.
This valve is better than the Watts though it costs more. In my installation the packing (at the stem) of the Watts failed, leading to leaking and corrosion.
The one issue is that the rebuild kit costs more than the whole part, if you can find it.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would not buy this product again.
I purchased 3 of these ,all 3 leaked out of the packing. Tighten them up and 2 of the 3 stopped leaking. The 3rd one started at the body gasket, tried to Tighten it and the gasket had split in two. So I removed the top nut and see the issue. When they machined the part its not flat all the way around. Not a good base.
Showing 1-10 of 24 reviews
I would purchase this item again!
My current Bell & Gossett Flow Control Valve is quite old. When servicing it last, the handle broke and would not then allow me to open the port for backflow purposes. I purchased this new valve assuming I would have to replace the old one. Since it's still functioning as designed, I chose not to replace it (as yet)!
Ron
Garnet Valley, Pa
2 years ago
Verified Buyer
Was this review helpful to you?
Product was as described
Replaced an old rusted and leaking valve.
Kate
Delaware
2 years ago
Verified Buyer
Was this review helpful to you?
excellent products
I got exactly what was described on the site. the delivery was prompt, and the valve worked as expected. I am very pleased with the service and the product.
luigi
quincy, mass
3 years ago
Verified Buyer
Was this review helpful to you?
Strait-angle flow control valve
Exact replacement for existing valve. Would be nice if they included a plug to close off the unused port or indicate that one would be needed when ordering.
AC
Piqua, OH
4 years ago
Verified Buyer
Was this review helpful to you?
Two install options is nice.
Having the two install options is handy.
PlumBob
Minnesota
4 years ago
Verified Buyer
Was this review helpful to you?
Works just like supposed too.
Used this to replace an older version of the same valve and installed just as the original.
Al
TELFORD, PA
5 years ago
Verified Buyer
Was this review helpful to you?
I only need one of these and was a replacement for a 20 year
I used product just like old one
Pete
Henry illinois
5 years ago
Verified Buyer
Was this review helpful to you?
I would not buy this product again.
I purchased 3 of these ,all 3 leaked out of the packing. Tighten them up and 2 of the 3 stopped leaking. The 3rd one started at the body gasket, tried to Tighten it and the gasket had split in two. So I removed the top nut and see the issue. When they machined the part its not flat all the way around. Not a good base.
Scooter
Hollidaysburg pa
6 years ago
Verified Buyer
Was this review helpful to you?
I would buy more products from this company
Product replace the old one works well
Tom
Hawley Pennsylvania
6 years ago
Verified Buyer
Was this review helpful to you?
i would buy your products any time
great the old BELL AND GOSSET LASTED ALMOST FORTY YEARS .
George the landlord
North Wales Pa
6 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
13 Questions13 Questions
Q: Why do I have to tap (rather hard)to make the flow control valve work. This one is only three years old. I don't think my water is a problem as it is treated for hardness, etc
Asked by Don Z 15 years ago
Add your answer
Verified Reply- PexSupply StaffIt appears there could be something stuck in the valve that is causing the water to get hung up.
Was this review helpful to you?
Q: Can the inlet port on the bottom that is plugged now, be unplugged to drain the zone when it's not used, in the winter?
Asked by Dan 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou can unplug the inlet port - just make sure to open the flow control when draining the system.
Was this review helpful to you?
Q: can one of the ports go to the expansion tank?
Asked by dave 16 years ago
Add your answer
Verified Reply- PexSupply StaffNo, you cannot connect any of these ports directly to an expansion tank.
