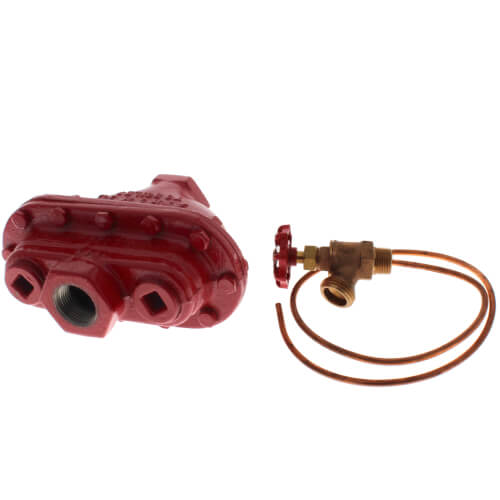

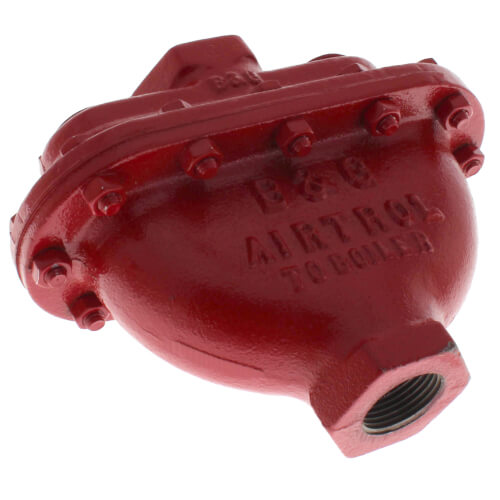

1" ATFL Airtrol Fitting (For 100 Gal or Large Compression Tank)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$787.97 each
In Stock
Get 2 Wed, Jun 24
Order by today, receive Wednesday
Compression Tank Diameter:
100+ Gallon Tank
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
Cast Iron
1"
175 MAX PSI
250°F Max Temp
Description
–
TANK FITTINGS DESCRIPTION Airtrol Tank Fittings help establish the proper initial liquid level in the compression tank when filling the hydronic system. They help maintain proper system pressurization by directing released air to the compression tank during system operation and permit cooler liquid flow to the boiler during the off cycle as system liquid cools. Airtrol Tank Fittings must be used with the appropriately sized In-Line Airtrol or Rolairtrol air separator. Tank Connection is 1/2" Male, Boiler Connection is 1" Female.
CONSTRUCTION
PERFORMANCE CHARACTERISTICS
CONSTRUCTION
- Body Type: Cast Iron
- Connection Type: Threaded
- Tubes: Copper and Copper Plated
- Vent Tube Fitting: Brass
- Ball Check: ATFL (only), Stainless Steel
PERFORMANCE CHARACTERISTICS
- All Tank Fittings Max Pressure :175 psig (1206 kPa)
- ATFL Drain-O-Tank Valve Max Pressure: 125 psig (862 kPa)
- Max Operating Temperature - All Fittings: 250+F (121+C)
Specs
–
| Compression Tank Diameter: | 100+ Gallon Tank |
|---|---|
| Product Type: | Airtrol Fitting |
| Size: | 1" |
| Max Pressure (PSI): | 175 |
| Material: | Cast Iron |
| Application: | Heating |
| Max Temp (F): | 250°F |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
