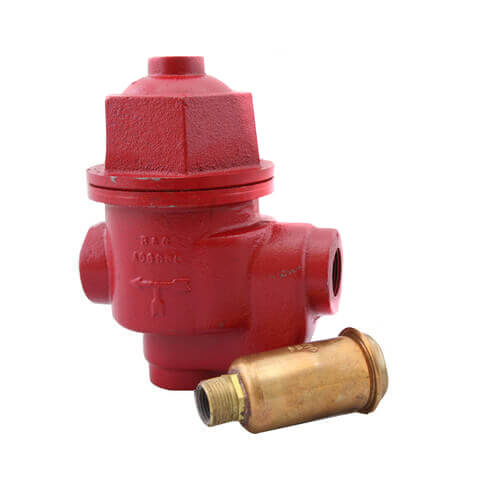

1" NPT Enhanced Air Separator
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
112105 has been discontinued
Discontinued June 4, 2025
This product was discontinued by the manufacturer.
MANUALS (2)
Product Highlights
–
FNPT x FNPT Connection
Cast Iron
1"
150 MAX PSI
250°F Max Temp
Description
–
See how Enhanced Air Separator works: as system fluid enters through the inlet, (either straight or angle) the diffuser distributes flow evenly across the stainless steel, wire brush-like medium. Air bubbles, even micro air bubbles, stick to the brush filaments. Trapped air rises above the diffuser through a baffle where the air is then released through an opening at the top. De-aerated water then goes back into the system.
EAS is very easy and convenient to install:
-Requires no minimum pipe run.
-Straight or angle pattern installation capability.
-Usable for systems with either steel compression or diaphragm expansion tanks.
-Removable and replaceable +" high capacity vent.
EAS is built to last:
-Rugged two-piece cast iron body and cap construction.
-Internal parts are all stainless steel.
-Vent has a brass body and non-ferrous internals.
Body Type: Cast Iron
Connection Type: Threaded
EAS is very easy and convenient to install:
-Requires no minimum pipe run.
-Straight or angle pattern installation capability.
-Usable for systems with either steel compression or diaphragm expansion tanks.
-Removable and replaceable +" high capacity vent.
EAS is built to last:
-Rugged two-piece cast iron body and cap construction.
-Internal parts are all stainless steel.
-Vent has a brass body and non-ferrous internals.
Body Type: Cast Iron
Connection Type: Threaded
Specs
–
| Product Type: | Air Eliminator |
|---|---|
| Max Pressure (PSI): | 150 |
| Size: | 1" |
| Material: | Cast Iron |
| Application: | Heating |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Max Temp (F): | 250°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Material
Connection Method
Connection Type
Product Reviews
Be the first to write a review.
Product Q&A
1 Question1 Question
Q: I just placed an order for a new expansion tank. I also ordered this air separator and a industrial automatic air vent. My question is where in the line do these need to be placed, for the tank to operate properly? Is there any specific distances they need to be placed or in a certain order from the tank?
Asked by Dad43 16 years ago
Add your answer
Verified Reply- PexSupply StaffNo specific distance or order is necessary. Most units are placed right near the tank.
Was this review helpful to you?
- Henry And Sons Plumbing & Heating Inc
On domestic cold water a convenient locate will suffice. On domestic hot water systems which have a return pump or pumps, it should be placed on the inlet side of the return pump, with an expasion tank, sized accordingly.
Was this review helpful to you?
