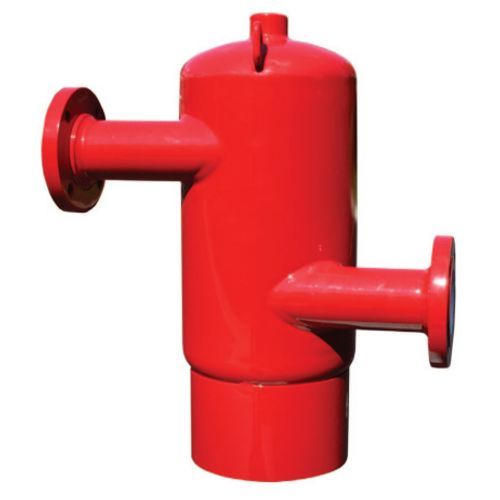

4" ROLAIRTROL Flanged Air Separator w/o Strainer Air Control & Elimination
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (2)
Lift Gate
Product Highlights
Description
The Bell & Gossett Rolairtrol is a patented air separator with
significant advantages. The Rolairtrol is capable of removing
the air that commonly causes problems in commercial hot and
chilled water systems. The Rolairtrol provides air free flow,
improving efficiency and performance of the HVAC system.
Every aspect of the Rolairtrol design maximizes air separation
and simplifies installation and maintenance. The air separation
efficiency of the Rolairtrol is significantly higher than any other
commercial air separator on the market.
The standard Rolairtrol air separator is constructed to meet
ASME code and is stamped for design pressure and temperature ratings of 125 psig (862 kPa) and 350°F (177°C). Higher
pressure and temperature models are available.
Features:
- Removed entrained air
- To protect the system against damage
- To eliminate system noise tangential flow pattern
- Increases air separation efficiency
- Allows use of smaller sizes than required with straight flow separators models up to 36" pipe size- NPT, flanged or grooved connections are available, with and without strainers
- Stainless steel construction available constructed in accordance with ASME code
- Stamped 125 psig, higher design pressures are available
Specs
| Material: | Steel |
|---|---|
| Max Flow (GPM): | 425 |
| Connection Type: | Flanged x Flanged |
| Connection Method: | Flanged |
| Size: | 4" |
