Note: Line Sets and Communication wire (14/4 stranded) are NOT included and must be purchased separately.
We recommend the installation of all Bluefin Ductless Split Systems to be done by a licensed, trained & qualified HVAC technician with the proper knowledge and background. A trained technician will be able to judge the best location for the air handling (evaporator) unit and also the correct size for the area it has to cool.
Should you experience an issue during the installation or the initial startup, please contact the technician that installed the units to troubleshoot with the Bluefin team. Bluefin cannot accept any service or warranty calls from anybody but a HVAC technician.
Please refer to our limited warranty policy for more details and how to submit a warranty claim.
The line sets connections on this unit are:
Remote Control Functions:
This unit's AHRI number is 216719247
| SEER2: | 23 |
|---|---|
| EER2: | 12.2 |
| Cooling Capacity (BTU): | 26000 |
| Number of Zones: | 3 - Three Zone 2 - Dual Zone 4 - Four Zone |
| Refrigerant Type: | R-454B |
| Voltage: | 208/230V |

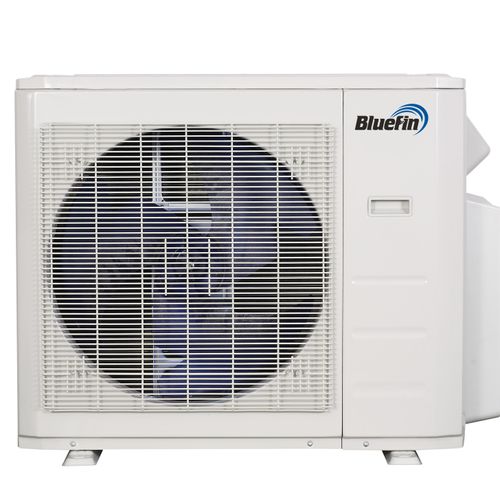

| Product Type: | Outdoor Unit |
| Energy Star Rated: | Yes |
| Heating Capacity (BTU): | 27000 |
| HSPF2: | 9.5 |
| Warranty: | 7 Year Compressor/5 Year Parts |
| Suction Line: | 1/2" 3/8" |
| Series: | Bluefin Plus |
| Liquid Line: | 1/4" |
