GW25-200 has been discontinued
Discontinued January 12, 2022
This product was discontinued by the manufacturer.
MANUALS (1)
This item replaces: GW25-200
Direct Replacement:

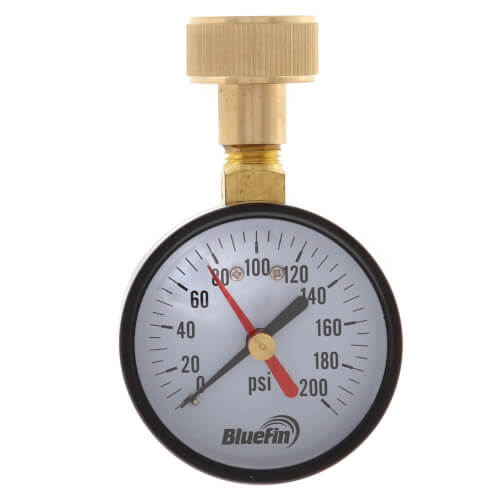

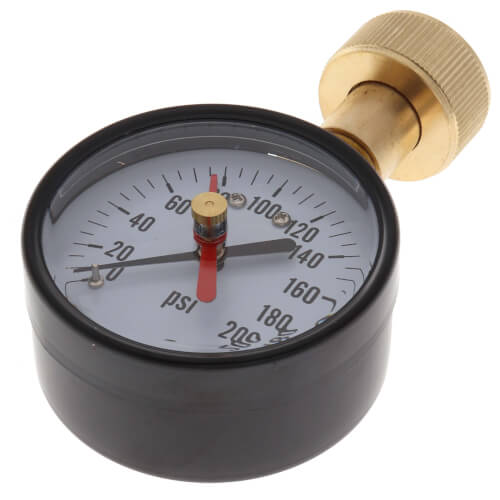

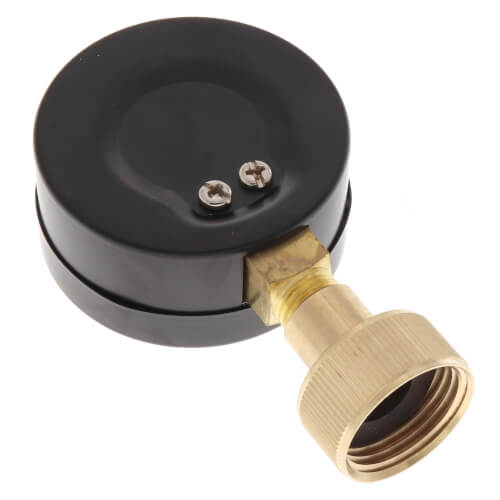

Water Test Gauge, 3/4" Hose Thread, Top Mount (0 - 200 PSI)
Product Highlights
–
3/4" NPT Connection
Female Thread Type
200 MAX PSI
0 PSI
Top
Description
–
This gauge provides a quick and easy way to test a wide range of pressure systems for leakage. Designed to measure and register water system pressure within a system, Ideal for recording the highest pressure reached to determine if a Pressure Reducing Valve (P.R.V.) is required as well as to trouble shoot problems caused by thermal expansion or pressure spikes. The 3/4" hose connection allows for direct connection to a water heater drain valve or hose bibb.
Part numbers with the MP suffix come with a maximum pressure indicator pointer. The indicator pointer is ideal for recording the maximum system pressure reached.
The maximum pressure indicator needle can be reset by turning the external knob counter clockwise.
Often used in conjunction with rubber test caps offering a quick and easy way to fill and drain water used in testing cast iron or Schedule 40 plastic pipe often used in sewer, drain and waste water system.
Features:
Often used in conjunction with rubber test caps offering a quick and easy way to fill and drain water used in testing cast iron or Schedule 40 plastic pipe often used in sewer, drain and waste water system.
Features:
- 3/4" brass female hose thread, swivel connection knurled for grip
- Black steel case w/ acrylic lens
- Copper alloy internals
- PSI range single-scale
- Maximum Pointer to record max. system pressure
Specs
–
| Dial Size: | 2-1/2" |
|---|---|
| Connection Type: | 3/4" NPT |
| Thread Type: | Female |
| Max Pressure (PSI): | 200 |
| Min Pressure (PSI): | 0 |
| Increments (psi): | 10 |
| Measures: | Pressure |
| Mount: | Top |
| Type: | Dry |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Dial Size
Connection Type
Thread Type
Max Pressure (PSI)
Min Pressure (PSI)
Product Reviews
3 out of 4 reviews
50% would recommend this product
5 star
25%
4 star
0%
3 star
50%
2 star
0%
1 star
25%
Showing 1-4 of 4 reviews
No never
This gauge is not accurate it's off by like 15psi don't buy it it's garbage!
trebb
Mesa AZ
6 years ago
Verified Buyer
Was this review helpful to you?
Perfect for what ineeded
checking water pressure , in domestic water and heating system, just what i needed, quick and easy use!
motor8448
New Jersey
6 years ago
Verified Buyer
Was this review helpful to you?
average
for household use,should be up to 60,or 70 psi,to show better beginning of scale(more charts between 0 and 20).For unknown reason there are hard to find the same gages with scale up to 60 psi,mostly up to 200psi.
Michael
NY
7 years ago
Verified Buyer
Was this review helpful to you?
Leaky product but works
for the price this gauge is selling at it does the job, sloppy but it does the job. Screw it in to a hose bib and check away. The red historical line is very light and will not stay in place if your not careful. The gauge I have leaks allot but that's not really a huge issue.
gjosh23
colorado springs, CO
7 years ago
Verified Buyer
Was this review helpful to you?
