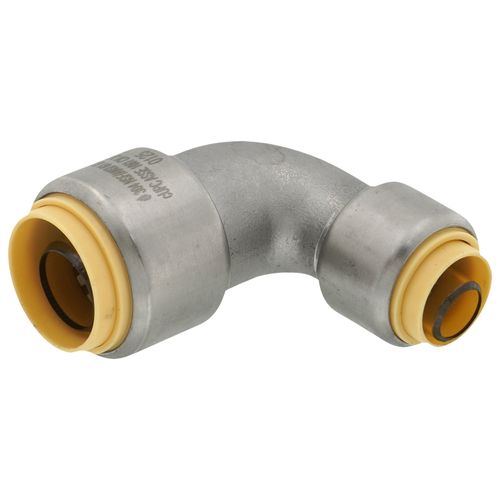

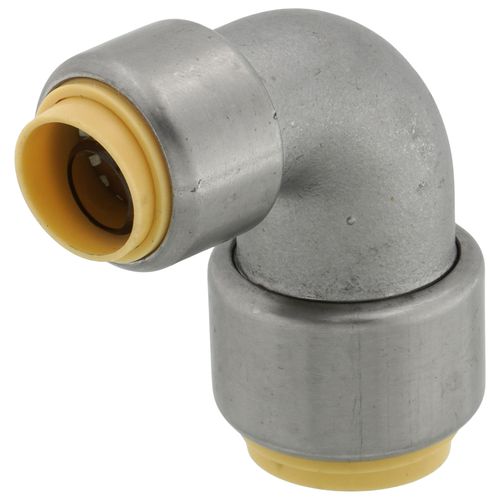

3/4" x 1/2" CTS 304 Stainless Steel Push-Fit 90-Degree Elbow (Lead Free)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$9.79 each
BOX UP & SAVE 10%
$52.86 box of 6
$8.81 each
In Stock
Get 3 Wed, Jul 8
MANUALS (3)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4" x 1/2"
Push Fit
300 MAX PSI
NSF 61, ANSI 372, NSF 372, ANSI 61 Standards Met
Stainless Steel
Yes
Description
–
Features:
*It is recommended that a continuous length of PEX pipe without any fittings/connections be used for below ground or a cement slab installation. Best practice is to have the termination fittings on each end of PEX above ground. When direct burial of a fitting cannot be avoided, the fitting must be properly wrapped with a silicone wrap to avoid corrosion due to aggressive soil conditions. Failure to properly wrap the fitting will void the manufacturer's warranty.
Specifications:
- Designed for use on copper, CPVC, PEX, PE-RT & HDPE piping in plumbing hydronic heating systems.
- Approved for use in both behind the wall and underground applications. Fittings must be properly wrapped to prevent corrosion in underground applications.*
- Suitable for potable and non-potable water applications.
- Eliminates the need for soldering, crimping or solvent welding.
- Ideal for wet, hazardous, and dry repairs in hard to access locations or where open flame could be a fire hazard for soldering.
- Plastic Disconnect Clip is used to release the gripper ring, making for easy disconnection.
- Fittings are supplied complete with stiffeners for PEX, PE-RT & HDPE pipe installed in the fitting. Can easily be removed for copper installations.
*It is recommended that a continuous length of PEX pipe without any fittings/connections be used for below ground or a cement slab installation. Best practice is to have the termination fittings on each end of PEX above ground. When direct burial of a fitting cannot be avoided, the fitting must be properly wrapped with a silicone wrap to avoid corrosion due to aggressive soil conditions. Failure to properly wrap the fitting will void the manufacturer's warranty.
Specifications:
- Size: 3/4" x 1/2"
- Fitting Type: 90° Elbow
- Connection Type: CTS
- Material: 304 Stainless Steel
- Temperature Range: Up to 200°F (93°C)
- Maximum Pressure Rating: 300 PSI
Specs
–
| Standards Met: | NSF 61 ANSI 372 NSF 372 ANSI 61 |
|---|---|
| PEX Size: | 3/4" 1/2" |
| Max Water Temp (°F): | 200°F |
| Max Pressure (PSI): | 300 |
| Material: | Stainless Steel |
| Connection Method: | CTS |
| Fitting System Compatibility: | Push Fit |
| Application: | Heating Plumbing |
| Size: | 3/4" x 1/2" |
| Lead Free: | Yes |
| Connection Type: | CTS x CTS |
