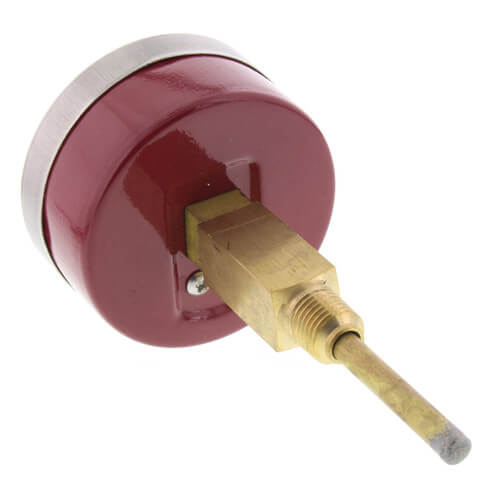

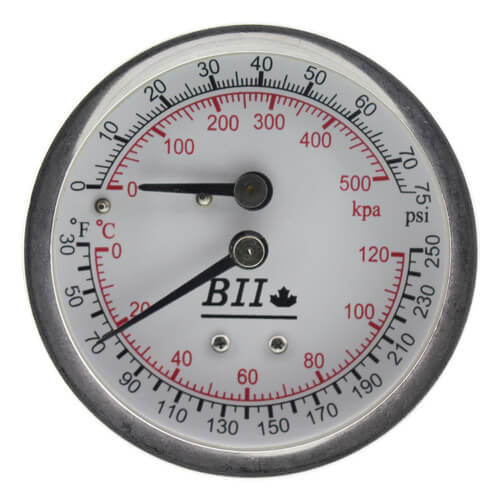

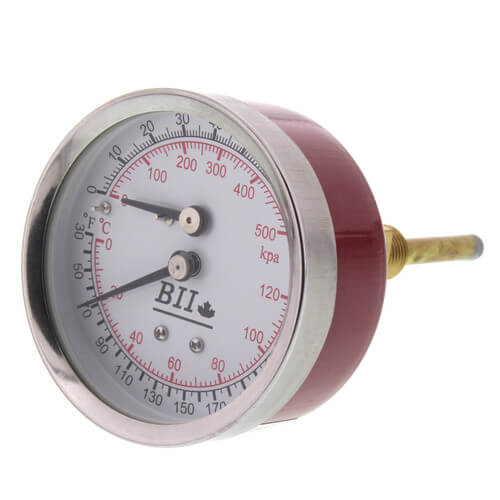

1/4" NPT, 2.5" Face, Temperature & Pressure Gauge (Tridicator), 3-3/8" Well
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$27.90 each
BOX UP & SAVE 14%
$119.55 box of 5
$23.91 each
In Stock
Get 3 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
30°F Min Temp
250°F Max Temp
120°C Max Temp
0°C Min Temp
75 MAX PSI
Back
Description
–
Specifications
- Temperature Range - 30°-250°F (5 degree increments)
- Pressure Range - 0-75 psi (2 psi increments)
- 3-3/8" Long Well, 1/4" NPT Thread
Specs
–
| Measures: | Pressure Fahrenheit Celsius |
|---|---|
| Dial Size: | 2-1/2" |
| Min Temp (F): | 30°F |
| Max Temp (F): | 250°F |
| Max Temp (C): | 120°C |
| Min Temp (C): | 0°C |
| Max Pressure (PSI): | 75 |
| PSI Range: | 0-75 |
| Mount: | Back |
| Connection Type: | 1/4" NPT |
| Type: | Dry |
| Length: | 3-3/8" |
| Accuracy: | +/- 2% |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Measures
Dial Size
Min Temp (F)
Max Temp (F)
Max Temp (C)
CURRENT ITEM
1/4" NPT, 2.5" Face, Temperature & Pressure Gauge (Tridicator), 3-3/8" Well
SKU: TR25X1-CB1-60/250
(8)
Pressure
Fahrenheit
Celsius
Fahrenheit
Celsius
2-1/2"
30°F
250°F
120°C
Product Reviews
4.5 out of 8 reviews
100% would recommend this product
5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%
Showing 1-8 of 8 reviews
nice temp pressure guage
replaced a similar item that started to fill with water, this unit is much heavier
only been in 2 months, no leaks, works fine !
home fixer
nj
4 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Price is right and east to order
Fast delivery, easy to install and performs just as expected.
Bob
Boothbay Harbor ME
12 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
It is what was discribed and works well.
Jeff
Hollidaysburg, Pa
12 years ago
Verified Buyer
Was this review helpful to you?
Larger face Easy to Read
Used on smaller commercial boilers.
Reasonably priced
Breckandy
Breckenridge, CO
13 years ago
Verified Buyer
Was this review helpful to you?
Temp/ Pressure gauge
The gauge is very helpful for monitoring my heating system. Having the pressure and Temperature combined into one gauge means I only needed half the fittings that I would have needed if I had two gauges.
Jeff
Gresham OR
14 years ago
Verified Buyer
Was this review helpful to you?
pressure and temp gauge
I used it on a solar loop to be able to read pressure and temp. can also use it on boilers
Pete
Telford PA
15 years ago
Verified Buyer
Was this review helpful to you?
Its a decent piece
For a few dollars more you get the pressure as well as temp gage. Saves money with only one connection to make. Certainly these are not high dollar gages but they work and look good.
Wish they had made one with a bottom connection instead of back. Other than that it works and seems decently calibrated.
ali gator
california
15 years ago
Verified Buyer
Was this review helpful to you?
Great product
Easy to install. Easy to read gauge for a good price.
Mike
Rochelle, IL
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: What causes 1 1/4" Pressure & Temperature gauges to misread pressure? If I have it installed in a black pipe tee, would that cause problems with the brass parts?
Asked by Todd 13 years ago
Add your answer
-
I notice my manifold Gauge is diff than my temp/pressure gauge. Manifold gauge shows 10 deg. higher. No problem with black pipe and brass together.
Was this review helpful to you?
-
The problems associated with dissimilar metals you referred to is called the di-electric effect. Brass is actually "di-electric" in that when used between black pipe and copper, it eliminates the reaction that takes place between them. That's unrelated to the problems you are experiencing. Simply put, if your gauge is in the system and not isolated by a valve then it should be reading system pressure. Otherwise it sounds like a defective gauge.
Was this review helpful to you?
Q: Is it possible to change the gauge without breaking the seal on the system?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffNo, it is not. If the tridicator is not isolated with a shutoff valve, you would need to drain the system before you change it.
Was this review helpful to you?
Q: There seems to be a discrepancy in the temperature range covered, please specify. Thanks.
Asked by Jake 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe accurate temperature range for this product is 70°F - 250°F.
Was this review helpful to you?
