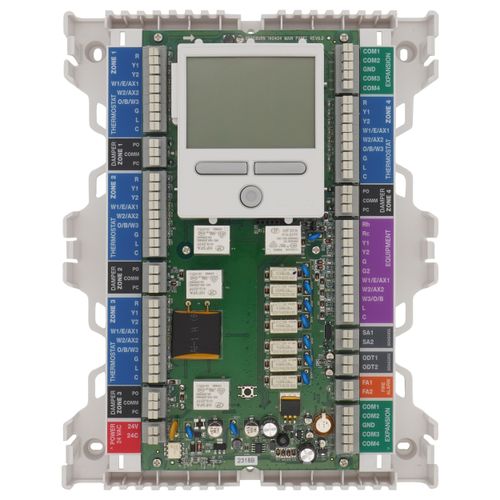

4 Zone Control Panel 4H/2C (w/ Supply Air Sensor)

Braeburn Zone Control Panels feature the latest in zone controls. Equipment and status are determined at a glance with the monitoring LEDs built into the panel. A supply air temperature sensor is included with each panel to provide constant control. Quick and Easy Installation

Braeburn zone panels are designed with the features customers demand: easy installation, at-a-glance status, quick and reliable wiring terminals - all in an attractive compact panel.

Features:

• Controls up to 4 heating and 2 cooling stages
• Expandable up to 32 zones
• Compatible with electric, gas, oil and heat pump equipment–including dual fuel
• Can be used with virtually all low-voltage thermostats and dampers from other manufacturers
• Compatible with BlueLink Wireless Technology
• Large 5.5 sq. in. display shows system status
• Dual fuel operation with Braeburn outdoor sensor
• LED’s show all calls at a glance
• Push-in terminals for easy wiring–no screwdriver needed
• Flexible staging controlled by panel or thermostat
• Push button set-up without dip switches
• Plenum sensor included
