$102.00 each
In Stock
Get 16 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (2)
This item replaces: 504, 673, 8210, BR511
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
200 CFM
8"
8.5 Sones
8-1/4" x 7"
11-1/2" Sq.
1 Year Warranty
Description
–

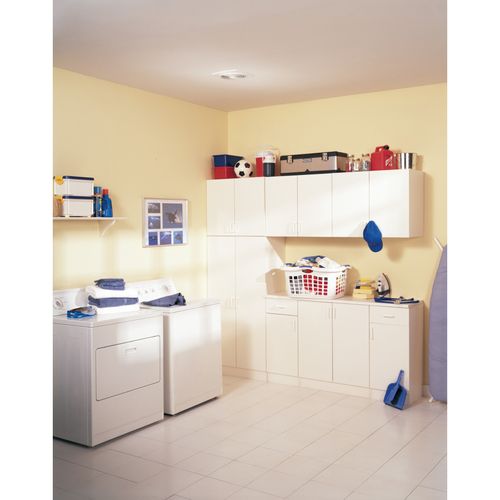

Eliminate humidity from laundry rooms, tobacco smoke from rec rooms and workshops, or cooking fumes from kitchens with Broan's high-efficiency utility ventilators.

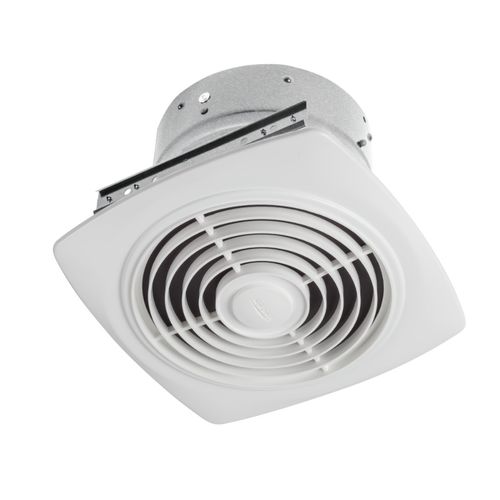

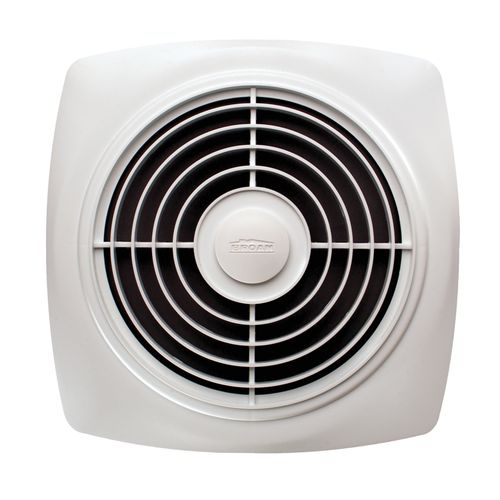

Broan Model 505 is a quiet and efficient ventilation fan. It uses an 8" round duct.
Features:
Broan Model 505 is a quiet and efficient ventilation fan. It uses an 8" round duct.
Features:
- 180CFM 8.5 Sones.
- Installs easily between ceiling joists.
- Adjustable mounting brackets with keyhole slots span 14" to 24"
- Fits 8" round duct
- Permanently lubricated, thermally protected, plug-in motor
- Housing features built-in backdraft damper.

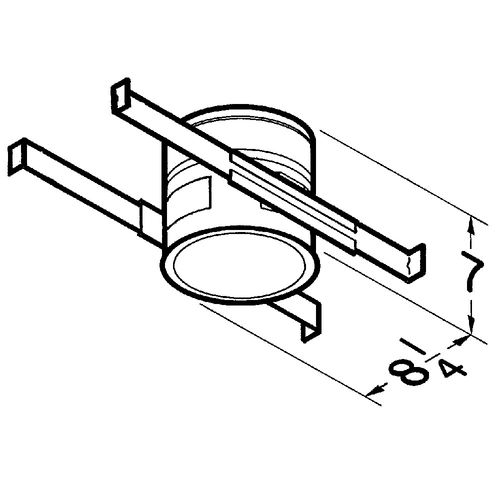

- Housing Dimension: 8-1/4" x 7"

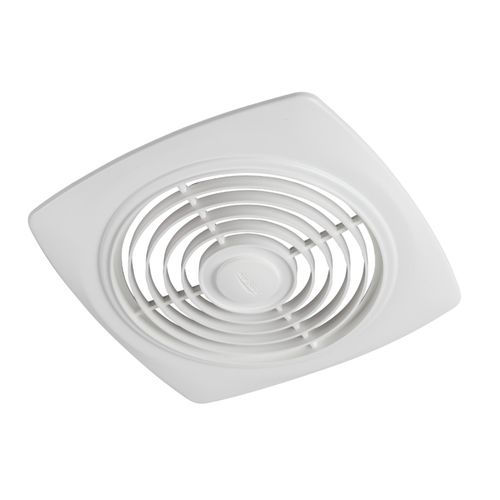

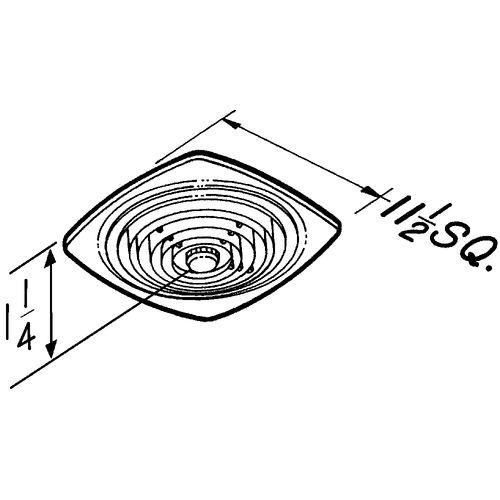

- 11-1/2" square plastic grille
Specs
–
| Duct Size: | 8" |
|---|---|
| Air Flow Capacity (CFM): | 200 |
| Sone: | 8.5 |
| Voltage: | 120v |
| Amperage: | 1.5 |
| RPM: | 1975 |
| Housing Dimension: | 8-1/4" x 7" |
| Grille Dimension: | 11-1/2" Sq. |
| Type: | Vertical Discharge |
| Grille Finish: | White |
| Warranty: | 1 Year |
