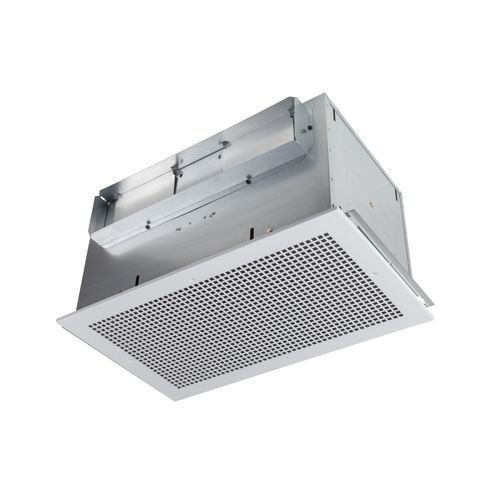

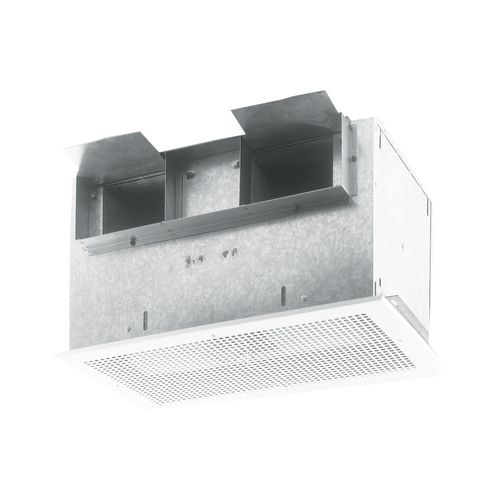

L500 Ceiling Mount Ventilation Fan, 4-1/2" x 18-1/2" Duct (514 CFM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
514 CFM
4-1/2" x 18-1/2"
3.3 Sones
21-1/2" x 12-1/4" x 11-3/4"
21" x 14"
1 Year Warranty
Description
–
Features:
- 514 CFM, 3.3 Sones (AMCA), horizontal ducting
- Can be ducted horizontally or vertically (512 CFM, 3.2 Sones with vertical ducting). In-line ducting available with separate adapter
- 4-1/2" x 18-1/2" duct connector
- Quiet automatic backdraft dampers
- Painted white enamel metal grille
- Two metal centrifugal blower wheels
- Use Broan Electronic Variable Speed Control to adjust blower speed and sound level (available separately)

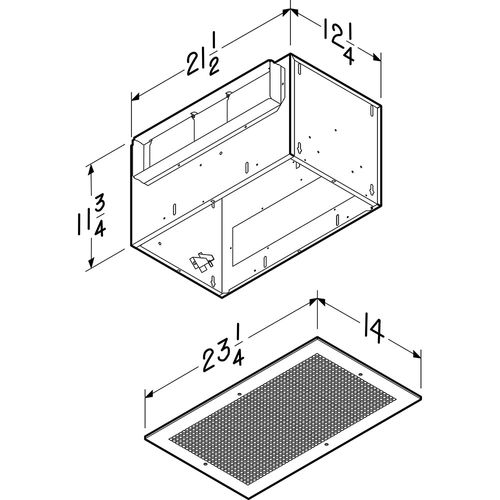

- Housing Dimension: 21-1/2" x 12-1/4" x 11-3/4"
- Grille Dimension: 21" x 14"
Specs
–
| Product Type: | Ceiling Mount Ventilation Fan |
|---|---|
| Duct Size: | 4-1/2" x 18-1/2" |
| Air Flow Capacity (CFM): | 514 |
| Voltage: | 120v |
| Sone: | 3.3 |
| Hertz: | 60 |
| Housing Dimension: | 21-1/2" x 12-1/4" x 11-3/4" |
| Amperage: | 2.2 |
| Grille Dimension: | 21" x 14" |
| Ducting: | Horizontal Vertical |
| Wattage: | 232 |
| Nominal RPM: | 810 |
| Grille Finish: | White |
| Grille Material: | Metal |
| Warranty: | 1 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
20 Replacement Parts
Wire Harness, S97006039
SKU: S97006039
BroanScrew - #10-32 x 1/2"
SKU: S99150471
BroanWhiz Nut - 1/4"-20
SKU: S99260477
BroanDuct Connector, S98009449
SKU: S98009449
BroanSlotted Pan Head Screw - #10-16 x 7/8"
SKU: S99150591
BroanBlower Assembly, Complete
SKU: 97014819
BroanMounting Bracket, S97014728
SKU: S97014728
BroanBlower Scroll Housing
SKU: S97014745
BroanDamper Flap Assembly
SKU: S97014822
BroanHousing Assembly, S97014744
SKU: S97014744
BroanSide Insulation
SKU: S99500391
BroanScrew - 8B x 1/4"
SKU: S99150415
BroanScroll Mounting Channel
SKU: S98009461
BroanScrew - #10-24 x 7/8"
SKU: S99160380
BroanMotor Mounting Bracket
SKU: S97014794
Broan120V Motor w/ Capacitor for L500 Models
SKU: S99080487
BroanRubber Isolator
SKU: S99100497
BroanStrain Relief Bushing
SKU: S99400035
Broan
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
I would definitely buy this again
It works perfect in my building keeping the smoke out
Terry
Texas
7 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Hello! Can this be used in the kitchen to ventilate smoke when cooking? Thanks.
Asked by Rye 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Rye, thanks for writing in. Yes, this can be used in a kitchen ventilation application.
