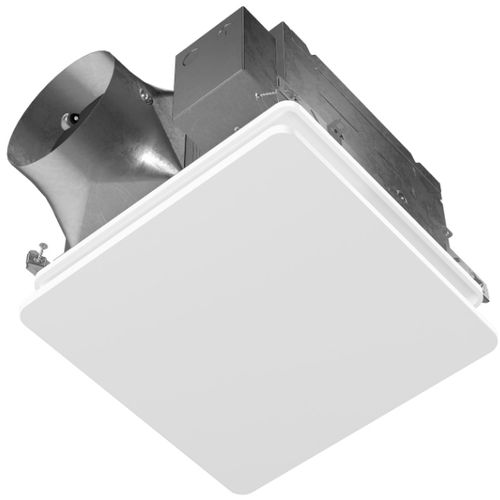

PTE1115RK Evolve Premium Exhaust Fan w/ Continuous Run, 110-130-150 Selectable CFM, 6" Duct
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
Overview:
The EVOLVE Premium exhaust fan by Broan-NuTone is revolutionizing bathroom ventilation. This selectable CFM premium series features motor technology making it the only exhaust fan on the market that can guarantee airflow performance, no matter how complicated the ductwork, reducing call-backs. The premium series saves the installer time with the easy, slide-and-lock installation, reducing installation time by more than 30%. The premium series provides best-in-class features and code compliance without the complex assortment thanks to the universal housing with modularity. This series will be the only modular solution in the market that allows the use of multiple modules within a single fan housing providing the option to add humidity and/or motion sensing. Selectable CFM available in 50-80-110 and 110-130-150 along with modularity allows for install of the perfect ventilation solution with reduced inventory.
Features & Benefits:
- TRUECFM: Guaranteed Performance no matter how complicated the ductwork. Selectable CFM with speeds of 110-130-150, maintains CFM through 0.4" static pressure.
- Near Silent Operation, 0.6-0.5-0.6 Sones
- Save Up to 30% on Installation Time: Easy snap-in housing to hanger bar and slide-and-lock blower attachment.

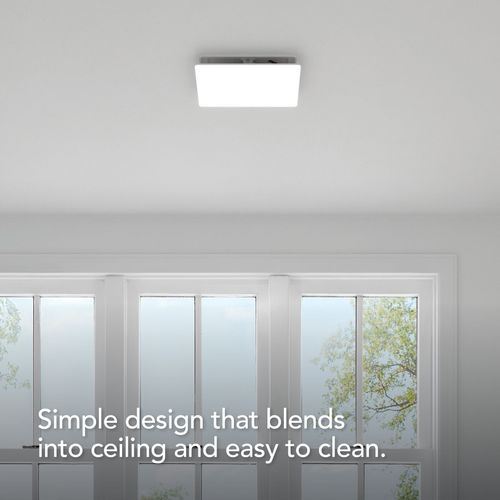

- Seamless Design: Blends into the ceiling with CleanCover grille and floating mounted positioning.
- Slide-Clip Grille/Cover: Fast grille attachment for easy maintenance without the hassle of springs.
- Code Compliance: Continuous run capability preferred for meeting ENERGY STAR, ASHRAE 62.2 and LEED whole home ventilation requirements.
- Modularity: modular solution in the market that allows the use of multiple modules within a single fan housing providing the option to add humidity and/or motion sensing.
- Mounting Frame allows for positioning housing anywhere on center joists
- 5-Year Part Warranty with award winning customer service.
- Our EVOLVE Premium Exhaust Fans, featuring a DC/ECM motor can lower HERS scores up to 1 point relative to a model that uses a PSC motor, when using an exhaust only strategy.
Specifications:
- CFM: 110-130-150
- Color Finish: White
- Duct Size: 6
- ENERGY STAR certified: Yes
- Grille Length: 14
- Grille Width: 13.125
- Housing Dimensions: 11.325 x 10.5 x 7.125
- Sound Level (Sones): 0.6-0.5-0.6
- Sound Level (Sones): 0.6
- UL Listed: No
- Humidity Sensing: No
- Motion Sensing: No
- Motor Engineered For Continuous Operation: Yes
- Night Light: No
- Radiation Damper Available: No
- Room Side Installation: No
- UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
- Rated Amps: 0.5
- Voltage: 120
- Can Be Used To Comply With Title 24: Yes
- Globe Material: ABS
- Manufacturer Warranty: 5 Years
- High Efficiency Luminaire: No
Specs
| Sone: | 0.6 |
|---|---|
| Voltage: | 120v |
| Energy Star Rated: | Yes |
| Air Flow Capacity (CFM): | 110 150 130 |
| Color: | White |
| Amperage: | 0.5 |
| Duct Size: | 6" |
