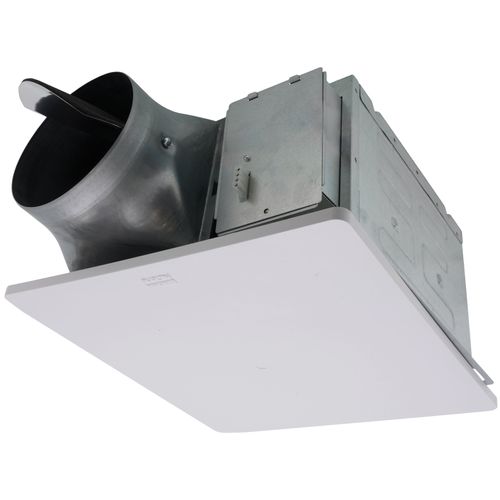

PTE511RK EVOLVE Premium Exhaust Fan w/ Continuous Run, 50-80-110 Selectable CFM, 6" Duct
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
Product Highlights
Description
The EVOLVE Premium exhaust fan by Broan-NuTone is revolutionizing bathroom ventilation. This selectable CFM premium series features motor technology making it the only exhaust fan on the market that can guarantee airflow performance, no matter how complicated the ductwork, reducing call-backs. The premium series saves the installer time with the easy, slide-and-lock installation, reducing installation time by more than 30%. The premium series provides best-in-class features and code compliance without the complex assortment thanks to the universal housing with modularity. This series will be the only modular solution in the market that allows the use of multiple modules within a single fan housing providing the option to add humidity and/or motion sensing. Selectable CFM available in 50-80-110 and 110-130-150 along with modularity allows for install of the perfect ventilation solution with reduced inventory.
Product Features:
- TRUECFM: Guaranteed Performance no matter how complicated the ductwork. Selectable CFM with speeds of 50-80-110, maintains CFM through 0.4" static pressure.
- Near silent operation, <0.3-0.5-0.6 Sones
- Save Up to 30% on Installation Time: Easy snap-in housing to mounting fame and slide-and-lock blower attachment.
- Seamless Design: Blends into the ceiling with CleanCover grille and floating mounted positioning.
- Slide-Clip Grille/Cover: Fast grille attachment for easy maintenance without the hassle of springs.
- Code Compliance: Continuous run capability preferred for meeting ENERGY STAR, ASHRAE 62.2 and LEED whole home ventilation requirements.
- Modularity: only modular solution in the market that allows the use of multiple modules within a single fan housing providing the option to add humidity and/or motion sensing.
- Mounting Frame allows for positioning housing anywhere on center joists
- 5-Year Part Warranty with award winning customer service.
Specs
| Sone: | 0.6 < 0.3 0.5 |
|---|---|
| Warranty: | 5 Year |
| Air Flow Capacity (CFM): | 110 50 80 |
| Wattage: | 10.6 |
| Voltage: | 120v |
| Amperage: | 0.45 |
| Grille Dimension: | 14" x 13-1/8" |
| Duct Size: | 6" |
| Grille Material: | ABS Polymeric |
| Weight (lbs): | 13 lbs |
| Product Type: | Ventilation Fan |
| Energy Star Rated: | Yes |
| Housing Dimension: | 11-3/8" x 10-1/2" x 7-1/8" |
| Application: | Bathroom |
| Hertz: | 60 |
| Type: | Multi-Speed |
| Color: | White |
| Air Circulation (CFM H/M/L): | 50/80/110 |
| Features: | Energy Star Qualified |
