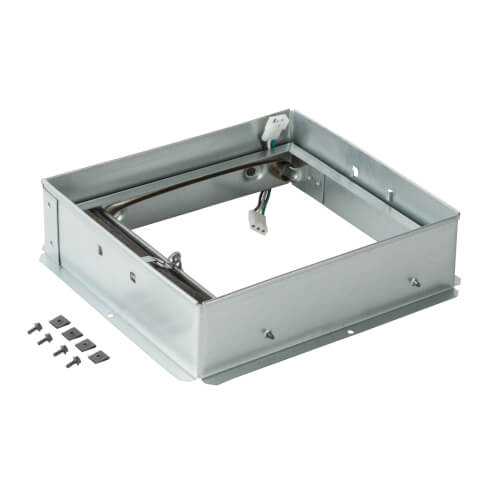

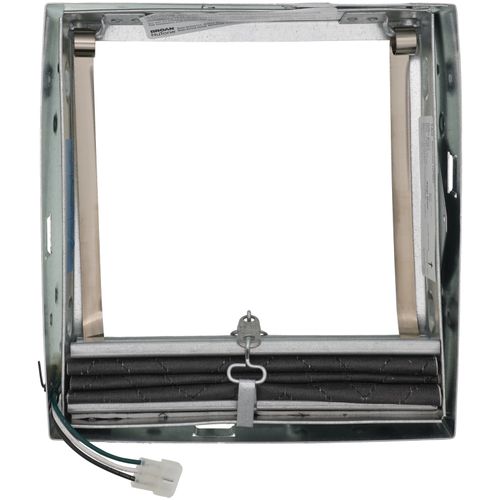

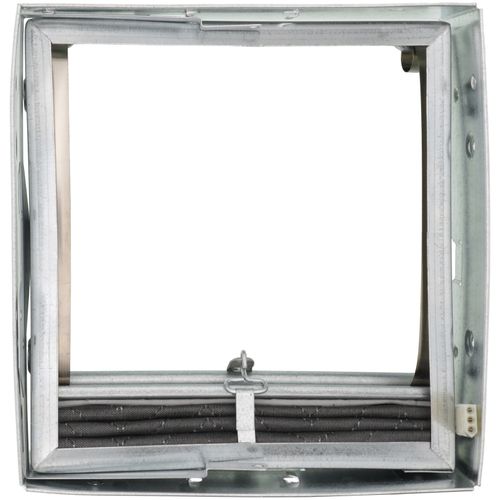

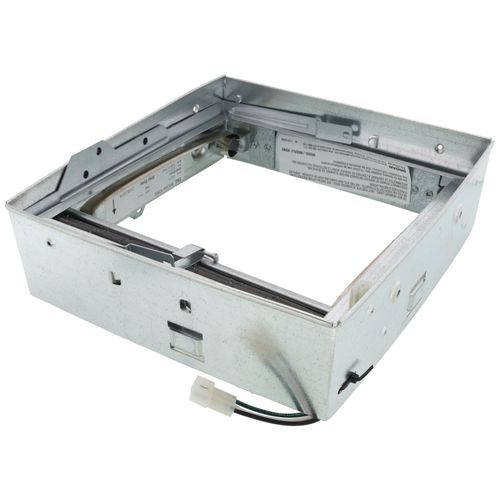

Broan-NuTone Radiation Damper

The Broan-NuTone® RDM2 Radiation Damper prevents the rapid spread of fire to other areas of a home during a fire. Many codes require that exhaust fans installed in multi-family homes, with fire-rated ceilings, must be protected by radiation dampers. When the air temperature passing through the damper exceeds 165°F, the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier, preventing the rapid spread of fire to other areas of the home.

Features:

• For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions
• Galvanized steel frame
• High temperature, non-asbestos, reinforced fiber thermal fabric
• Stainless steel closure springs
• 165°F fusible link
• Separate outer frame allows complete fan and damper serviceability without disturbing the surrounding ceiling material
• For use with fans and ENERGY STAR qualified fan/lights
• Includes light jumper cable
• Meets or exceeds NFPA-90A
• UL Classified (UL-555C)
• Compatible with the following fan and fan/light models: Broan AE110-B, AE50110DC, AER110KC, AE110K, AE80K, A80-B, AE50-B, AE80-B, AE80B-B, A110-B, AE50110DCS, AE110S-B, AE80S-B, AE80BS, AE50110DCL, AE80BL-C, AE80L-C, AE110L-C, AE80LK, AE110LK, AE50110DCSL, AE80SL-C, AE110SL-C, AER110C, AER110K, AER110L, AER110LC, AER110LK, AER110S, AER50, AER50C, AER70C, AER80, AER80BC, AER80C, AER80K, AER80LK, AER90C, AER90LC, AEW110, AR110, AR110C, AR110LKVV, AR80C, AR80X, AR90C NuTone AEN110-B, AN80C-B, AEN50-B, AEN80-B, AEN80B-B, AN110-B, AERN50110DCKC, AERN110K, AERN80K, AERN80KC, AEN80BS, AEN80BL-C, AEN80L-C, AEN110L-C, AERN80LK, AERN110DCSL, AERN110C, AERN110LC, AERN110S, AERN70C, AERN80BC, AERN90C, AERN90LC, ARN110C, ARN110LKVV, ARN80C, ARN90C
