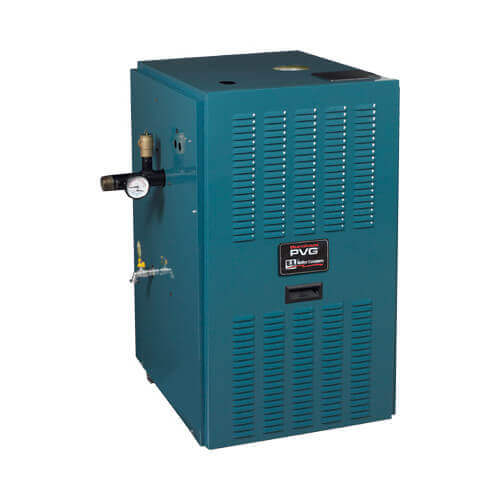

PVG5, 104,000 BTU Output High Efficiency Cast Iron Boiler (Nat Gas)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (5)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
PVG5 High Efficiency Cast Iron Boiler, Taco (NG)
Specs
| Vent Type: | Power Vent |
|---|---|
| Fuel Type: | Natural Gas |
| Height (Inches): | 38.09" |
| Depth (Inches): | 26-3/5" |
| BTU Input: | 140000 |
| BTU Output: | 104000 |
| Material: | Cast Iron |
| DOE Rating: | 120000 |
| Warranty: | 1 Year (Boiler Parts), 25 Year Limited (Heat Exchanger) |
| IBR Rating: | 104000 |
| Efficiency: | 85.3% |
| Capacity (Gallons): | 3.84 |
| System Type: | Hydronic (Water) |
| Vent Size: | 3" |
| Air Intake: | 4" |
| Features: | EI/Spark Ignition |
| Weight (lbs): | 298 lbs |
| Width (Inches): | 17.78" |
Contact
Happy Independence Day!
15 Replacement Parts
Need help finding a replacement part?
Product Reviews
Be the first to write a review.
Product Q&A
5 QuestionsQ: Can this boiler be direct vented through a wall
Asked by razor 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis boiler is power vented. Please refer to the installation guide and product specifications for more information: http://s3.pexsupply.com/manuals/1282136846411/37118_PROD_FILE.pdf http://s3.pexsupply.com/manuals/1282136876891/37119_PROD_FILE.pdf
Q: Can this boiler be converted to propane?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, the boiler can be converted to LP with part number 100545-01.
Q: Do these units require chimney liners?
Asked by Kevin 15 years ago
Add your answer
Verified Reply- PexSupply StaffThat would be based on the condition of your chimney.
Q: Looking at the specs and installation manual for this boiler, I cannot see a list of parts included with it. For example does it come complete with a circulater?
Asked by Al 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis standard equipment that comes with this boiler includes a circulator shipped loose, an insulated jacket, T&P gauge, drain valve, high limit, EI module, draft blower, flame roll-out switch, gas valve, stainless steel burners, safety relief valve, differential pressure switch, vent connector/terminal, air inlet terminal, and vent terminal for horizontal/vertical (sidewall) venting.
Q: I am looking to replace my old oil-fired boiler which has small tank for hot water. I am converting the home to natural gas and I want to know if I need a free standing hot water heater for 4 people? Is there anything else I should be concerned with?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou can add an indirect water heater to your boiler system for domestic hot water. It is like adding another zone to your system.
