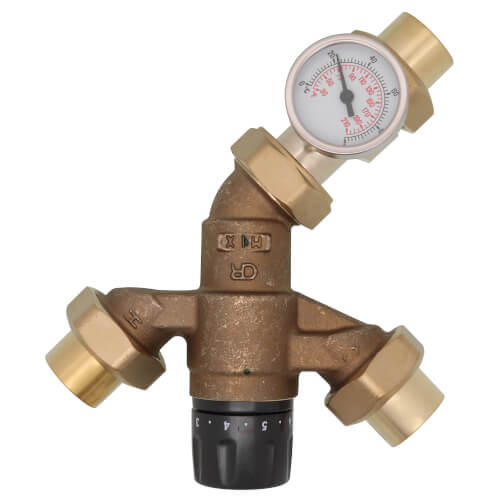

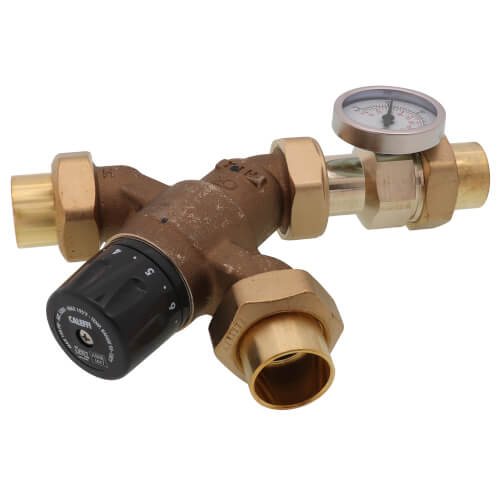

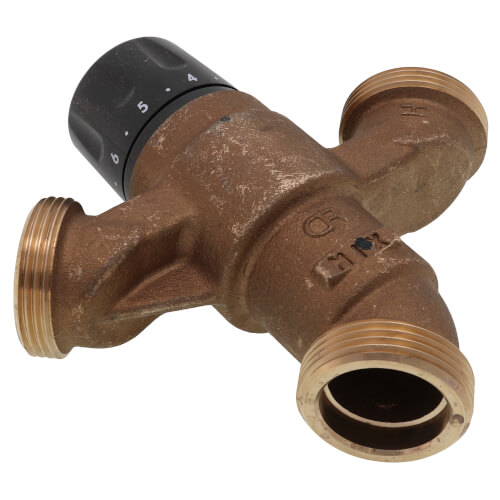

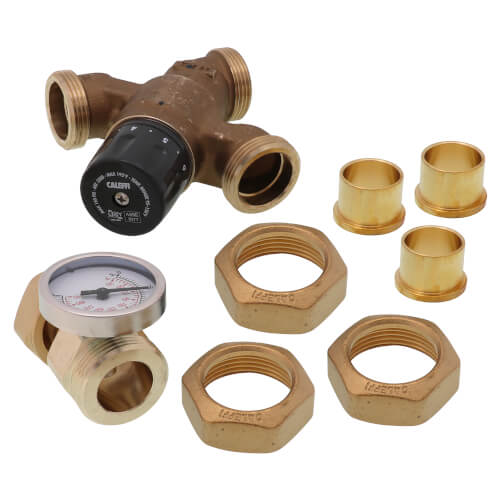

1" Sweat Union AngleMix 3-Way Thermostatic Mixing Valve w/ Gauge
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$294.79 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
C x C Connection
1"
Brass
3-Way
Description
–
1" Sweat Union AngleMix 3-Way Thermostatic Mixing Valve w/ Gauge
The Caleffi AngleMix™ 520 series thermostatic mixing valve is used in systems producing domestic hot water and easily mounts to the top of water heaters. The mixed temperature outlet is inline with the hot water inlet, facilitating trouble-free connection and reducing space required for installation. The AngleMix maintains the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The mixing valve also features a thermal shut-off function that operates in the event of a cold water supply failure at the inlet. Also available as body only, for a wide variety of separately-ordered end connections, the angle style body design offers improved fluid dynamics for better performance and reduces installation labor and materials, eliminating a piping elbow in typical installations.
Features:Adjustment temp range: 95° - 150°F
Max working pressure (static): 150 psi
Max working pressure (dynamic): 75 psi
Max inlet temp: 195°F
Gauge scale: 30° - 210°F
Min flow for optimum performance: 0.5 gpm (0 gpm with recirculation)
The Caleffi AngleMix™ 520 series thermostatic mixing valve is used in systems producing domestic hot water and easily mounts to the top of water heaters. The mixed temperature outlet is inline with the hot water inlet, facilitating trouble-free connection and reducing space required for installation. The AngleMix maintains the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The mixing valve also features a thermal shut-off function that operates in the event of a cold water supply failure at the inlet. Also available as body only, for a wide variety of separately-ordered end connections, the angle style body design offers improved fluid dynamics for better performance and reduces installation labor and materials, eliminating a piping elbow in typical installations.
Features:
Specs
–
| Size: | 1" |
|---|---|
| Connection Method: | Sweat |
| Connection Type: | C x C |
| Type: | Angle |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Includes: | Gauge |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-1 of 1 reviews
Caleffi 520619A Thermostatic Mixing Valve Review
The Caleffi 520619A Thermostatic Mixing Valve is an excellent investment for anyone looking to improve their hot water system's efficiency and safety.
Performance & Benefits
I have this installed with my 75-gallon Rheem PowerVent water heater, keeping the tank temperature at 150°F while maintaining a consistent 120°F output. Since installation, I have never run out of hot water, even when my two kids, the washing machine, and the dishwasher are all running at the same time. The valve efficiently blends the incoming hot and cold water, ensuring a steady supply of warm water without fluctuations in temperature.
Final Verdict
This mixing valve is worth every penny for anyone looking to maximize their hot water availability while maintaining safety. If you have a large household or multiple water-consuming appliances running simultaneously, this valve is a game-changer. The ability to store hot water at higher temperatures while delivering a safe output extends the available hot water supply, reducing the risk of running out.
I highly recommend the Caleffi 520619A for anyone looking to improve their water heater's efficiency and hot water availability.
KehoeChicago
Chicago IL
1 years ago
