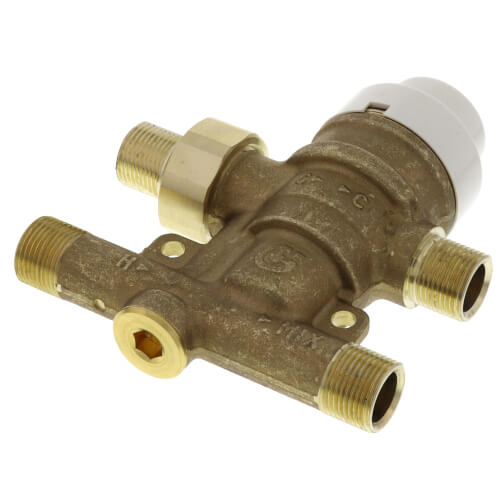

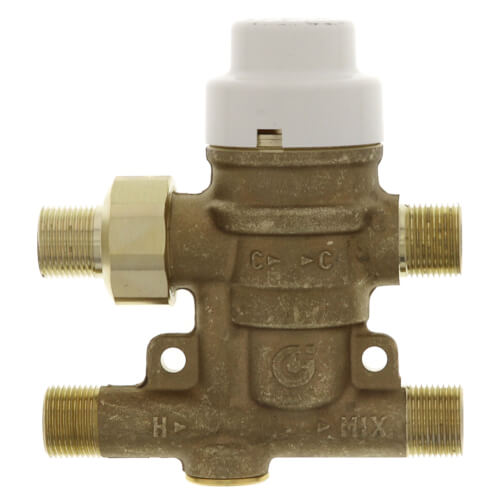

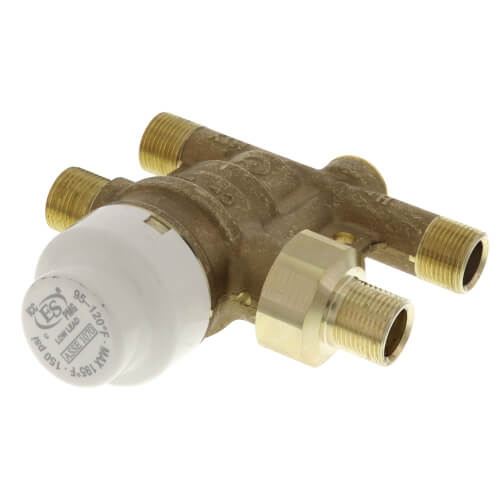

3/8" Compression Union SinkMixer Scald Protection 4-Way Thermostatic Mixing Valve, 0.52 CV (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$104.04 each
In Stock
Get 67 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Compression x Compression Connection
3/8"
0.52 Cv
120°F Max Temp
150 MAX PSI
ASSE 1070 Standards Met
Description
–
Thermostatic mixing valve for under sink and under counter applications where the user must be protected from the danger of scalding caused by hot water.
Product Features
Product Features
- Convenient 4-port design for undersink mounting: Cold water bypass to fixture eliminates need for additional piping and tee used with 3-port mixing valves.
- Easy installation and service: Stand-off wall bracket for sturdy mounting and simple hose connection.
- Precision engineering:
- - DZR low-lead brass forging resists corrosion. Patent pending design.
- Low friction, high-performance moving parts resist scaling for stable, accurate temperature control.
- Peroxide-cured EPDM elastomers for chlorine and chloramine resistance and long life. - Replaceable inlet check valves with stainless steel mesh filters: Maximum debris protection and convenient cleaning or replacement.
- Tamper-resistant locking nut and cap: Prevent unauthorized set point adjustments.
- Certified to: ASSE 1070, CSA B125.3, CSA B125.7 and NSF 372.
- Temperature adjustment range: 95—120ºF.
- Cold inlet temperature: Min. 39°F; Max. 85°F.
- Hot inlet temperature: Min. 120°F; Max. 195°F.
- Maximum operating differential pressure:
- - Static: 150 psi (10 bar).
- Dynamic: 70 psi (5 bar). - Min. operating differential pressure (dynamic): 1.5 psi (0.1 bar).
- Min flow for optimum performance 0.35 gpm.
- Max flow for optimum performance 2.3 gpm.
Specs
–
| Max Temp (F): | 120°F |
|---|---|
| Size: | 3/8" |
| Max Pressure (PSI): | 150 |
| Flow Capacity (Cv): | 0.52 |
| Connection Method: | Compression |
| Connection Type: | Compression x Compression |
| Application: | Point of Use |
| Standards Met: | ASSE 1070 |
| Material: | Brass |
| Body Pattern: | 4-Way |
| Lead Free: | Yes |
