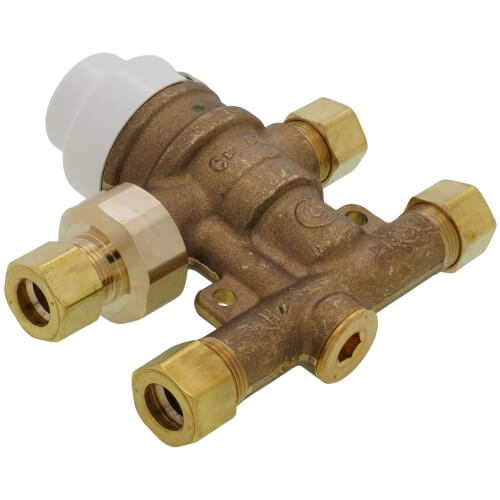

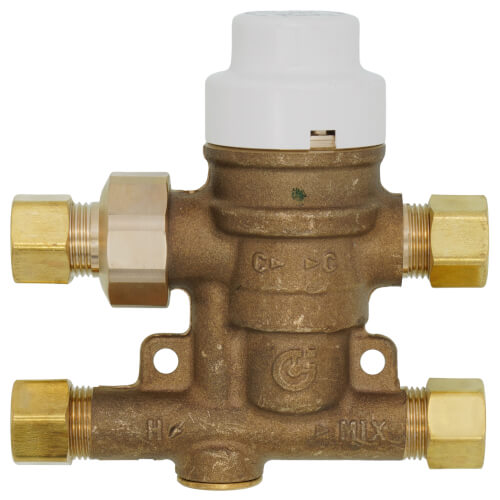

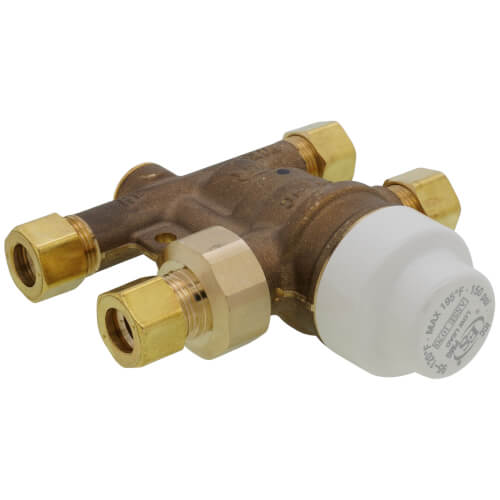

3/8" Comp. Union SinkMixer Scald Protection 4-Way Thermostatic Mixing Valve with Fitting Package, 0.52 CV (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$125.01 each
In Stock
Get 15 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Compression x Compression Connection
3/8"
0.52 Cv
120°F Max Temp
150 MAX PSI
ASSE 1070 Standards Met
Description
–
The Caleffi SinkMixer 5212 scald protection undersink thermostatic mixing valve is precision engineered to deliver safe tempered water. Patent pending forged low-lead brass valve body enables high flow capacity in a very compact body. The easy-to-install 4-port design connects all water lines and, compared to standard 3-port valves, requires less piping and no tee. ICC-ES certified compliance to NSF/ANSI/CAN 61-2019 and IPC, IRC, UPC and NPC for drinking water systems in accordance with the U.S. and Canadian plumbing codes.
Includes (1) plug for the cold outlet port (used for automatic sinks which have a one pipe connection for tempered water), (4) nuts and (4) ferrules (sleeves) for use with pipe-types other than flexible stainless steel hoses. Also available without hardware package (refer to: 521201A).
Includes (1) plug for the cold outlet port (used for automatic sinks which have a one pipe connection for tempered water), (4) nuts and (4) ferrules (sleeves) for use with pipe-types other than flexible stainless steel hoses. Also available without hardware package (refer to: 521201A).
Specs
–
| Max Temp (F): | 120°F |
|---|---|
| Size: | 3/8" |
| Max Pressure (PSI): | 150 |
| Flow Capacity (Cv): | 0.52 |
| Connection Method: | Compression |
| Connection Type: | Compression x Compression |
| Application: | Point of Use |
| Standards Met: | ASSE 1070 |
| Material: | Brass |
| Body Pattern: | 4-Way |
| Lead Free: | Yes |
