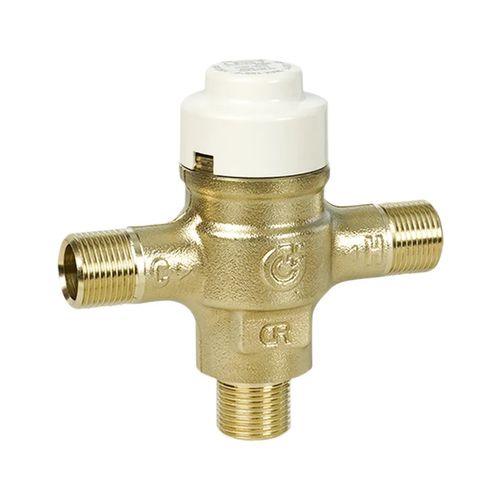

3/8" Compression SinkMixer Scald Protection 3-Way Thermostatic Mixing Valve, 0.52 CV (Lead Free)

Overview:

The Caleffi SinkMixer thermostatic mixing valve ensures that users are safeguarded against scalding water temperature conditions in applications such as sinks and lavatories. The SinkMixer is most critical in hospitals, schools, and nursing homes, where precise water temperature control is essential for the safety of vulnerable individuals. In accordance with American and Canadian product safety standards, the valve functions to control and limit the mixed outlet water temperature up to 120 F. In the event of cold water supply failure the valve will rapidly reduce outlet flow to prevent against scalding conditions from fluctuating hot water supply conditions. The SinkMixer is equipped with integral check valves on both supply inlets to prevent against cross flow conditions.

Features & Benefits:

• Compact point of use design: Minimizes installation time and saves space under automatic, single-pipe bathroom sink faucets.
• Temperature-limiting scald protection: Rapid hot water shutoff reduces the risk of scalding. Outlet temperature limited to 120F.
• Universal hardware included: 3/8" compression connections fit standard braided hoses. Nuts and ferrules included for hard or plastic pipe installations.
• Tamper-resistant snap-on cap: Installer-friendly temperature adjustment with tamperproof cover prevents unauthorized set point adjustments.
• Serviceable inlet check valves: Checks and stainless steel screens provide maximum debris protection and convenient cleaning or replacement.
• Proven design and material experience: DZR low lead brass forging resists corrosion. Peroxide-cured EPDM elastomers for maximum chlorine and chloramine resistance and long life.
• Scald protection
• Universal 3/8" compression hardware included

Specifications:

• MAX. WORKING PRESSURE 150 psi (10 bar)
• SETTING TEMPERATURE RANGE 95 - 120F ( 35 - 50C )
• FACTORY SETTING 113 F ( 45 C )
• MINIMUM FLOW 0.35 gpm ( 1.3 lpm )
