$3,490.90 each
In Stock
Get 1 Tue, Jun 9 - Thu, Jun 11
Size:
2-1/2"
Connection Type:
Flanged x Flanged
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 86 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Flanged x Flanged Connection
Brass, Steel
2-1/2"
150 MAX PSI
Description
–
Application

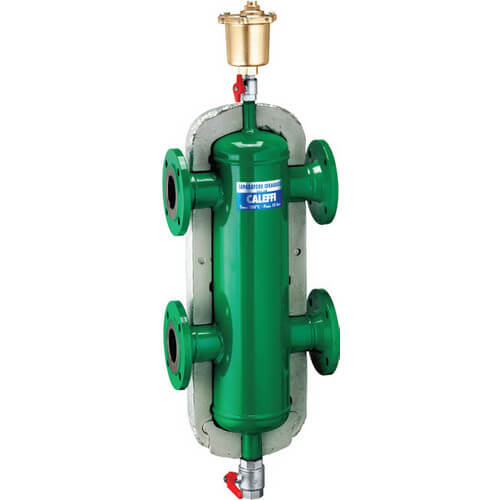

The hydraulic separator creates a zone with a low pressure loss, which enables the primary and secondary circuits connected to it to be hydraulically independent of each other; the flow in one circuit does not create a flow in the other.
Typical Specification
Furnish and install on the plans and described herein, a Caleffi HydroSeparator as manufactured by Caleffi. Each separator must be designed with an epoxy resin painted steel body, a brass blowdown drain valve and automatic brass air vent with brass shutoff valve. The separator design must include ANSI B16.5 Class 150 RF flanges. Each separator shall be Caleffi model 548 or approved equal. (See product instructions for specific installation information.)
Maximum Temperature: 250°F without insulation and 210°F with insulation shell.
The hydraulic separator creates a zone with a low pressure loss, which enables the primary and secondary circuits connected to it to be hydraulically independent of each other; the flow in one circuit does not create a flow in the other.
Typical Specification
Furnish and install on the plans and described herein, a Caleffi HydroSeparator as manufactured by Caleffi. Each separator must be designed with an epoxy resin painted steel body, a brass blowdown drain valve and automatic brass air vent with brass shutoff valve. The separator design must include ANSI B16.5 Class 150 RF flanges. Each separator shall be Caleffi model 548 or approved equal. (See product instructions for specific installation information.)
Maximum Temperature: 250°F without insulation and 210°F with insulation shell.
Specs
–
| Product Type: | Hydraulic Separator |
|---|---|
| Connection Method: | Flanged |
| Connection Type: | Flanged x Flanged |
| Size: | 2-1/2" |
| Max Pressure (PSI): | 150 |
| Material: | Brass Steel |
