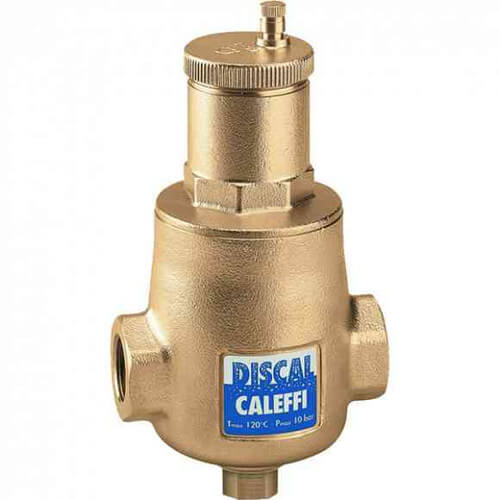

3/4" NPT Female DISCAL Air Separator with Automatic 1/2" Check
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$163.62 each
Backorder
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
Brass
3/4"
150 MAX PSI
250°F Max Temp
Description
–
Air separators are used to continuously remove the air contained in the hydronic
circuits of heating and cooling systems. The air discharge capacity of these
devices is high. They are capable of automatically removing all the air present
in the system, down to the micro-bubble level. The circulation of fully deaerated
water enables the equipment to operate under optimum conditions,
free from any noise, corrosion, localized overheating and mechanical damage.
Features
Features
- Air separator with 1/2" service check valve to mount expansion tank on bottom thread.
- Brass body.
- NPT and sweat connections.
- Stainless steel float guide pin and linkage.
- Stainless steel mesh internal element.
- Max working pressure: 150 psi
- Working temp range: 32 - 250F
Specs
–
| Size: | 3/4" |
|---|---|
| Product Type: | Air Eliminator |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Max Temp (F): | 250°F |
| Max Pressure (PSI): | 150 |
| Material: | Brass |
