Air separators are used to continuously remove the air contained in the hydronic circuits of heating and cooling systems. The air discharge capacity of these devices is very high. They are capable of removing automatically all the air present in the system down to micro-bubble level.
The circulation of fully de-aerated water enables the equipment to operate under optimum conditions, free from any noise, corrosion, localized overheating or mechanical damage. Micro-bubbles, fusing with each other, increase in volume (get larger) until they become large enough to rise to the top where they are automatically released.
Features

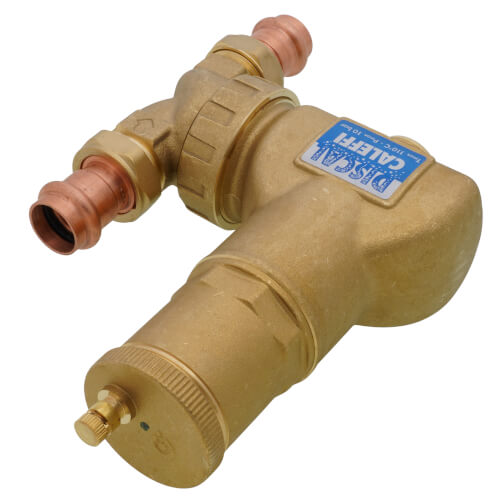

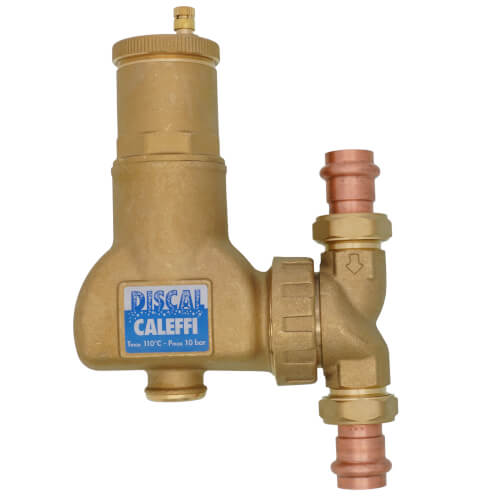

Air separator with rotating collar for horizontal or vertical pipes.
Brass body
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
Max working pressure: 150 psi
Working temp range: 32° - 250°F
Specs
–
Size:
3/4"
Product Type:
Air Eliminator
Connection Method:
Press Union
Connection Type:
Press Union x Press Union
Max Temp (F):
250°F
Max Pressure (PSI):
150
Material:
Brass
