559920A has been discontinued
Discontinued December 8, 2023
This product was discontinued by the manufacturer.
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
–
Steel
FNPT x FNPT Connection
100 MAX PSI
210°F Max Temp
8
1"
Description
–

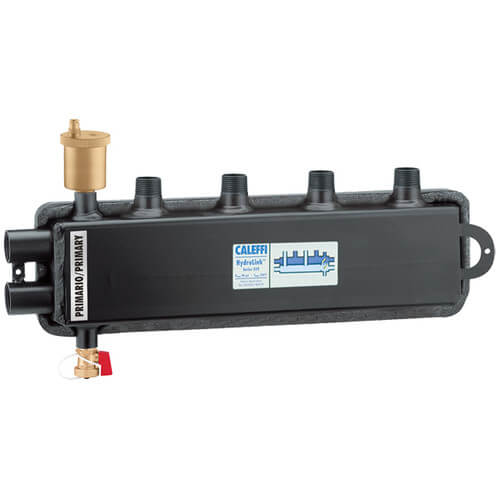

The HydroLink™ is a device combining a hydraulic separator and
distribution manifold header used in heating systems. This device
provides uniform supply water temperature to distribution circuits
when there is one boiler or multiple boilers. The HydroLink™ offers
easy, labor-saving installation in any type of hydronic circuit by
combining hydraulic separation with a prefabricated distribution
manifold into a single compact unit.
The HydroLink™ 5599 series is compatible with HydroMixer™ 165, 166, 167 series mixing units.
Product Specifications
The HydroLink™ 5599 series is compatible with HydroMixer™ 165, 166, 167 series mixing units.
Product Specifications
- Hydraulic separator + distribution manifold. 2+0 with built-in mounting.
- Steel body with pre-formed insulation.
- Complete with automatic air vent and drain valve.
- Max. working pressure: 100 psi.
- Working temperature range: 32°F to- 210°F
Specs
–
| Type: | Hydraulic Separator |
|---|---|
| Material: | Steel |
| Product Type: | Hydraulic Separator |
| Connection Type: | FNPT x FNPT |
| Max Pressure (PSI): | 100 |
| Max Temp (F): | 210°F |
| Media: | Water or Glycol up to 50% |
| Number of Outlets: | 8 |
| Supply Size: | 1" |
| Size: | 1" |
