1-1/2" Sweat Union LEGIOMIX Electronic Mixing Valve
Hover image to zoom

1-1/2" Sweat Union LEGIOMIX Electronic Mixing Valve

Brand:
Caleffi
SKU:
600089A
Rating:
(0)
Q&A:
(0)
1-1/2" Sweat Union LEGIOMIX Electronic Mixing Valve
Hover image to zoom
$2,935.02 each
In Stock
In Stock
Get 1 Tue, Apr 30 - Wed, May 1
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Connection Type icon
C x C Connection
Size icon
1-1/2"
Flow Capacity (Cv) icon
34 Cv
Max Temp (F) icon
185°F Max Temp
Max Pressure (PSI) icon
230 PSI
Material icon
Brass

Description

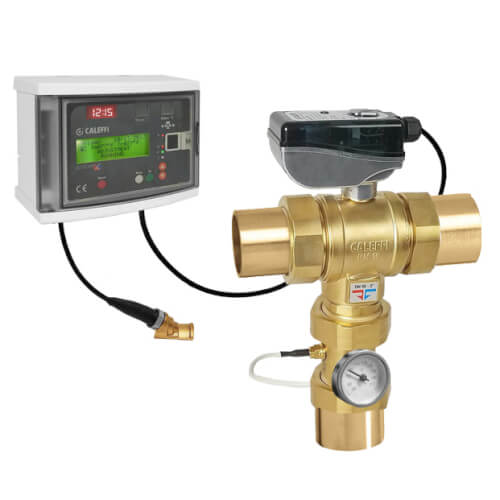

The electronic mixing valve is used in centralized systems that produce and distribute domestic hot water. It maintains the temperature of the domestic hot water delivered to the user when there are variations in the temperature and pressure of the hot and cold water at the inlet or in the draw-off flow rate. The LEGIOMIX electronic mixing valve provides precise temperature control over very low and very high flow rate demand, minimal pressure drop with a ball valve control element, automatic self-cleaning to prevent scale formation and easy-to-use digital interface with data logging, alarming and status indication. The LEGIOMIX electronic mixing valve is furnished with a controller with LCD user interface that provides a set of programs for circuit thermal disinfection to kill Legionella. The controller is configurable via keypad, or local or remote computer. Depending on the type of system and habits of the user, temperature levels and operation times can be programmed as desired. In addition, it comes standard with monitoring and remote control connections.

Specifications:
  • Adjustment temperature range: 70° - 185°F
  • Disinfection temperature range: 100° - 185°F
  • Max body pressure rating (static): 230 psi
  • Max operating pressure: 150 psi
  • Max inlet temperature: 212°F

Specs

Size:

1-1/2"

Connection Method:

Sweat

Connection Type:

C x C

Max Temp (F):

185°F

Max Pressure (PSI):

230

Material:

Brass

Body Pattern:

3-Way

Flow Capacity (Cv):

34

Standards Met:

ASSE 1017
