$216.56 each
In Stock
Get 6 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
C x C Connection
Brass, Steel
1"
45 MAX PSI
195°F Max Temp

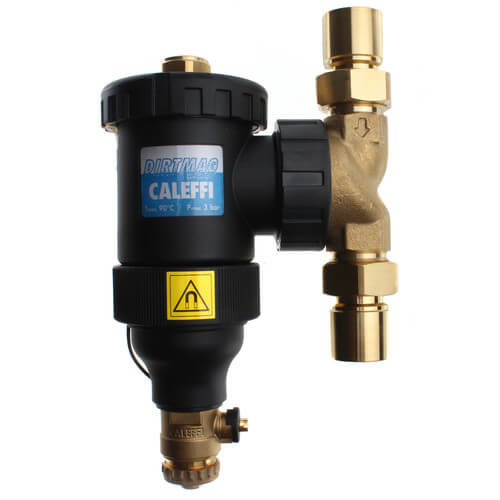

Description
–
- Brass mounting housing.
- Composite PA66G30 body.
- Can be rotated for installation to either vertical or horizontal pipes while maintaining the same operating performance.
- Max working pressure: 45 psi
- Working temp range: 32 - 195F
- Particle separation capacity: to 5 um (0.2 mil)
- Magnetite removal efficiency: 95%
- Drain valve with hose connection.
- Top dosing point port.
- Dosing capacity: 12 fluid oz
- Manual screw air vent.
Specs
–
| Product Type: | Dirt Eliminator |
|---|---|
| Connection Method: | Sweat |
| Connection Type: | C x C |
| Max Temp (F): | 195°F |
| Max Pressure (PSI): | 45 |
| Size: | 1" |
| Material: | Brass Steel |
| Type: | Magnetic |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
Yes
It was handy it could be mounted in the pipe vertical, the unions tend to rotate the pipe when tightening in a way didn't expect I was a little concerned with the temperature rating of 175F if I remember correctly, but the return water is below that.
Good quality design and construction.
R.F.
Comstock Park, MI
5 years ago
Verified Buyer
Was this review helpful to you?
SupplyHouse is great!
High quality part. Fast Shipping.
Purchaser
New York
6 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: I have instaled a new 1" dirt Mag on a new high efficiency Lochinvar boiler. The system has half in floor radiant and 1/2 old cast iron radiation How often should the dirt mag need to be cleaned? and is this something a house wife should be able to do? [email protected]
Asked by [email protected] 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffIn terms of how often cleaning is needed, that would vary upon the conditions on the system it is installed in so Caleffi does not give a set amount of time. Once or twice a heating season should likely be enough. The process of cleaning it is fairly simple. Check out page 5 of the link below for maintenance instructions: https://s3.amazonaws.com/s3.supplyhouse.com/product_files/NA545396-install.pdf
Was this review helpful to you?
