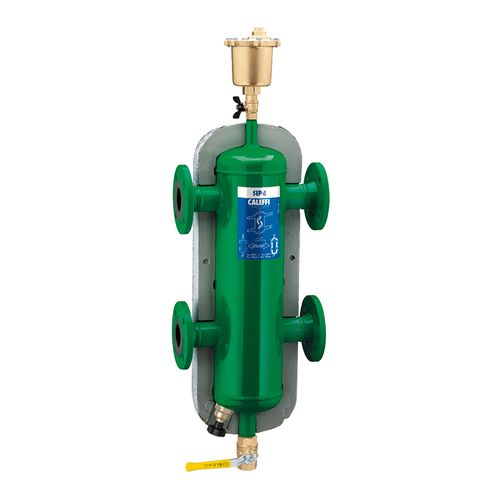

SEP4 6" ANSI Flange 4-in-1 Air, Dirt, Hydro & Magnet Hydraulic Separator
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
6"
484 MAX GPM
Description
–
Specifications:
- 4-in-1 Hydraulic Separators (ANSI flange, 2-6")
- Combination 1. air, 2. hydraulic and 3. dirt separation, plus 4. magnetic separation.
- Complete with: automatic air vent (code 501502A); air vent shut-off valve (code NA39589);
- 1" drain valve NA39753
- 1 1/4" drain valve NA39588
- Stainless steel internal coalescing mesh.
- One neodymium magnet assembly.
- Working temp. w/o insulation: 32-270°F.
- Pre-formed insulation
- Connection: 6'' ANSI 150 flange, ASME & CRN.
- Maximum working pressure: 150 psi.
- Medium temperature range: 32-220 °F.
- Material: steel.
Specs
–
| Size: | 6" |
|---|---|
| Max Flow (GPM): | 484 |
| Connection Method: | Flanged |
| Product Type: | Hydraulic Separator |
