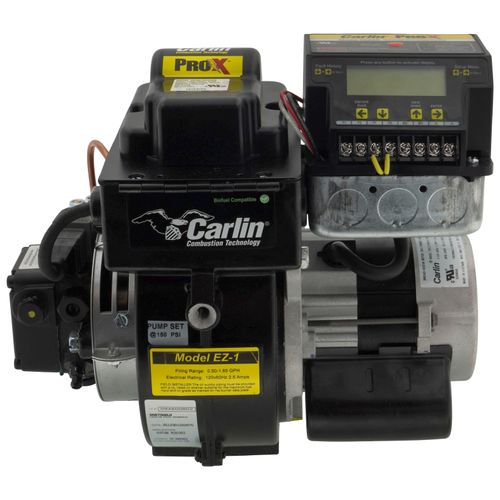

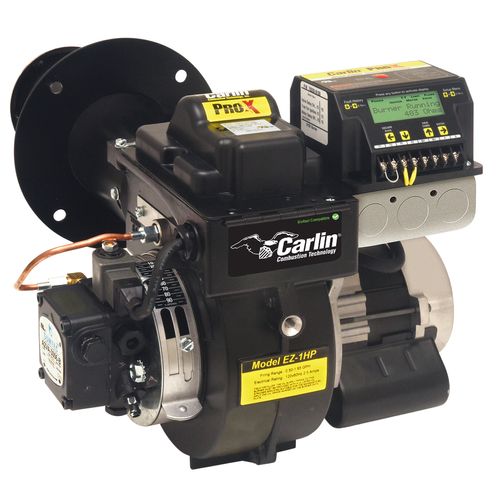

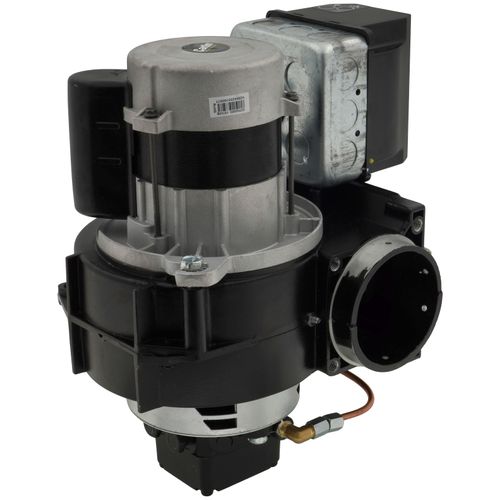

EZ-1 Oil Burner Chassis

Note: Tube and flanges would need to be ordered separately

Features:

• Quiet Operation
• Unique blower design nearly eliminates fan noise
• Combustion and ignition noise virtually eliminated by the unique nose cone design
• Comes standard with time-tested solid state ignition and state-of-the-art microprocessor control technology
• Carlin 60200 microprocessor control with water resistant design and pump priming feature - Diagnostic LED lights indicate operating mode: Self-check, Flameon, Recycle, Lockout and Latch-up
• Carlin 41000 electronic ignitor - re-engineered for added durability Unmatched Performance
• EZ Burner design yields exceptional fuel/air mixing for wide range of operation
• Oil pump with secondary internal cone valve provides added shut-off protection
• OEM Specified - Manufactured to OEM specifications to optimize appliance efficiency and performance
• High quality PSC Motor provides required torque while reducing energy consumption

Specifications:

• 0.50 to 2.6 GPH
• 70,000 to 364,000 BTUH
• U.S. - No. 1 or No. 2 Fuel oil
• Canada - No. 1 Stove oil or No. 2 Furnace oil
• Power - 120 vac/60 hz/1-phase
• Current - Approximately 5.8 amps
• Limit circuit input - 120 vac/60 hz
• Motor (PSC) - 1/6 hp, 3450 rpm
• Oil valve power - 120 vac/60 hz
• Nozzle line heater - 120 vac/60 hz
• Alarm contacts (isolated) - 24 vac/vdc, 2 amps
• Ignition
• Carlin Model 41000 solid state electronic ignitor
• Ignition voltage - 14,000 volts
• Carlin Model 60200 microprocessor control
• 15-sec. Trial for ignition (TFI)
• Pump prime
• Serviceman reset protection (Latch-up after three consective lockouts)
• Interrupted duty ignition
• Recycle on flame failure
• Maximum ambient - 140°F (60°C)
• Agencies: UL Listed (US & Canada)

Standard Equipment:

• Carlin 45000 Ignitor
• CAD Cell
• Carlin PSC Motor 1/6 hp, 3450 rpm
• Single-Stage Fuel Unit
