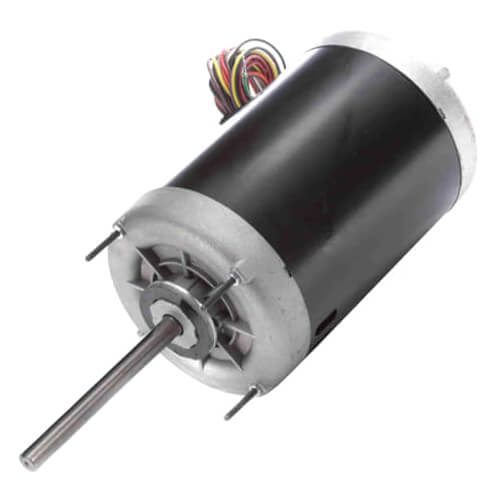

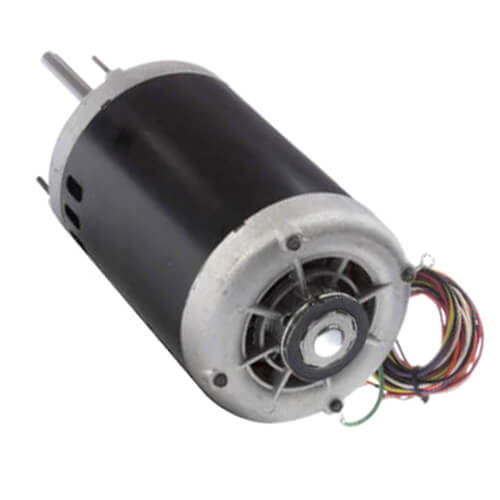

6-1/2" Stock Motor (460/200-230V, 825 RPM, 1 HP)

56 Frame Vertical Condenser Fan Continuous Duty, Air Over

Features:
  • Automatic Overload
  • Class B moisture resistant insulation
  • Double Sealed Ball Bearing
  • Permanent Split Capacitor
  • Positioning lugs for easy belly-band mounting
  • Quick-connect design
  • Reversible Rotation
Read more
Manuals (1)
Specs
Type:
Single or Dual Voltage
Permanent Split Capacitor
Horse Power:
1
Bearings:
Ball
Voltage:
460/200-230V
Duty:
Continuous
RPM:
825
Poles:
8
Mount:
Cushion Ring
Speeds:
1
Enclosure Type:
Open Ventilated Air Over
Rotation:
RCCW
Amperage:
6.8
3.4
3.4/7.2-6.8
Frame:
56Z
Amperage:
7.2
Insulation Class:
B
Phase:
1
Overload Protection:
Thermally
Max Ambient Temp (°F):
104°F
×
