C512V1 has been discontinued
Discontinued September 10, 2024
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
460/200-230V
850 RPM
RCW
1/2 HP
Resilient Base
3.5 Amps
Description
–

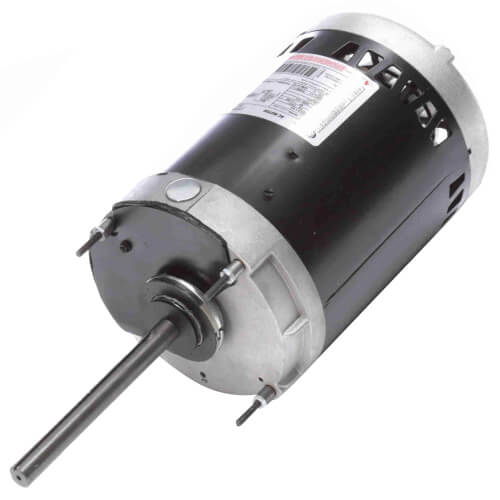

6-1/2" Stock Motor (460/200-230V, 850 RPM, 1/2 HP)
56 Frame Vertical Condenser Fan Continuous Duty, Air Over
Features:
56 Frame Vertical Condenser Fan Continuous Duty, Air Over
Features:
- Automatic Overload
- Class B moisture resistant insulation
- Double Sealed Ball Bearing
- Permanent Split Capacitor
- Positioning lugs for easy belly-band mounting
- Quick-connect design
- Reversible Rotation
Specs
–
| Type: | Single or Dual Voltage Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/2 |
| Voltage: | 460/200-230V |
| Duty: | Continuous |
| Mount: | Resilient Base |
| Poles: | 8 |
| RPM: | 850 |
| Bearings: | Double Sealed Ball |
| Speeds: | 1 |
| Rotation: | RCW |
| Hertz: | 60 |
| Enclosure Type: | Open Air Over |
| Frame: | 56Y |
| Amperage: | 3.5 |
| Insulation Class: | B |
| Phase: | 1 |
| Diameter (Inches): | 6-1/2" |
| Overload Protection: | Thermally |
| Max Ambient Temp (°F): | 140°F |
