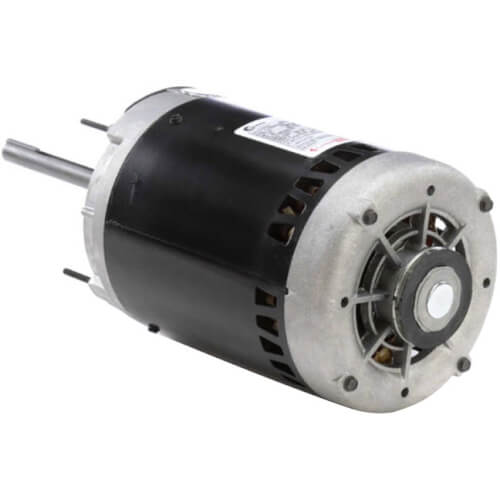

Main product image of 6-1/2" POC25 Motor, 1 HP, 1075 RPM, Reversible (200-230/460V)
Magnifying glass
Hover image to zoom

6-1/2" POC25 Motor, 1 HP, 1075 RPM, Reversible (200-230/460V)

Brand:
Century
SKU:
C770V1
Rating:
(0)
Q&A:
(0)
6-1/2" POC25 Motor, 1 HP, 1075 RPM, Reversible (200-230/460V)
Magnifying glass
Hover image to zoom
$582.16 each
In Stock
In Stock
Get 14 Tomorrow, Aug 21
Order by 2PM, receive Tomorrow
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
460/200-230V
Product Highlight: RPM
1075 RPM
Product Highlight: Rotation
RCW
Product Highlight: Horse Power
1 HP
Product Highlight: Mount
Resilient Base
Product Highlight: Amperage
4.8 Amps

Description

–
6-1/2" POC25 Motor, 1 HP, 1075 RPM, Reversible (200-230/460V)

Features:
  • Automatic Overload
  • Class B moisture resistant insulation
  • Double Sealed Ball Bearing
  • Permanent Split Capacitor
  • Positioning lugs for easy belly-band mounting
  • Quick-connect design
  • Reversible Rotation
  • 1.0 Service Factor
  • 5/8 inch diameter shaft with both keyway and flat
  • 1 inch minimum extended thru bolts
  • 56 Frame
  • 60 HZ
  • Single Phase
  • 60º C ambient

***Note: Image may not be actual representation of item .

Specs

–
Product Type:

Motor

Type:

Single or Dual Voltage

Permanent Split Capacitor

Diameter (Inches):

6-1/2"

Horse Power:

1

Voltage:

460/200-230V

Duty:

Continuous

Speeds:

1

Phase:

1

RPM:

1075

Poles:

6

Bearings:

Double Sealed Ball

Mount:

Resilient Base

Rotation:

RCW

Frame:

56Y

Hertz:

60

Enclosure Type:

Open Air Over

Insulation Class:

B

Amperage:

4.8

Overload Protection:

Thermally

Max Ambient Temp (°F):

140°F
