Description

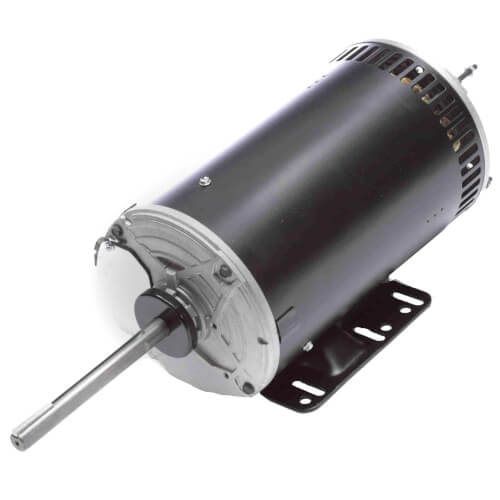

6" PSC Motor, 1-1/2 HP, 850 RPM, Reversible (208-230/460V)

Features:
  • Inverter duty
  • 70°C (158°F) max ambient
  • Class F moisture resistant insulation
  • Automatic overload protector
  • Large water slinger
  • Double sealed ball bearings
  • Shaft up mounting
  • Quick connect design
  • Energy-efficient three phase design
  • Conductive bearing grease for inverter applications
  • 50/60 Hertz
  • Three phase
  • Energy-efficient three phase desig

***Note: Image may not be actual representation of item .
Hide Description
Specs
Product Type:

Motor

Type:

3 Phase

Diameter (Inches):

6"

Horse Power:

1-1/2

Voltage:

190V

380v

208/230v

Speeds:

1

Duty:

Continuous

Mount:

Rigid Base

RPM:

850

Bearings:

Double Sealed Ball

Poles:

8

Phase:

3

Rotation:

Reversible

Hertz:

60

Amperage:

6.6-6.6/3.3

Frame:

56HZ

Enclosure Type:

Open Air Over

Amperage:

6.0/3.0

6.6

3.3

Insulation Class:

F

Amperage:

3

6

Overload Protection:

Thermally

Max Ambient Temp (°F):

158°F

×
