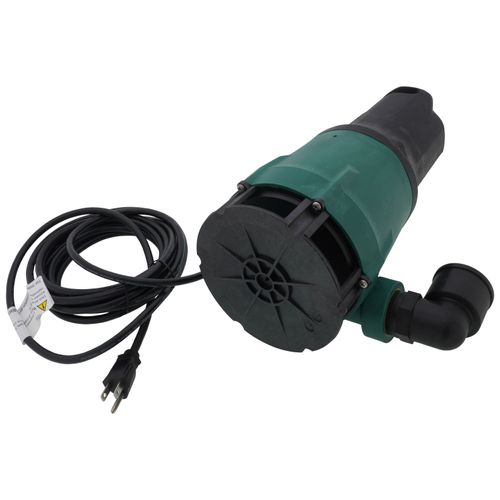

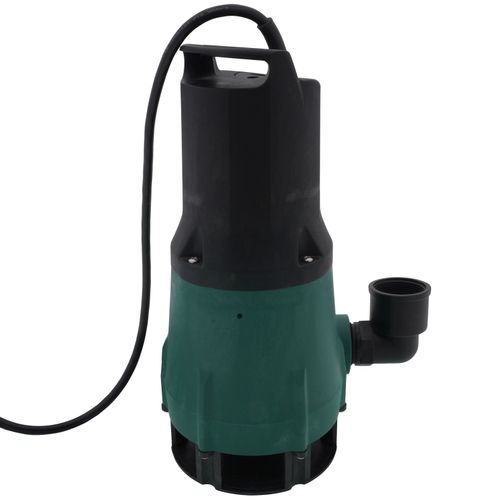

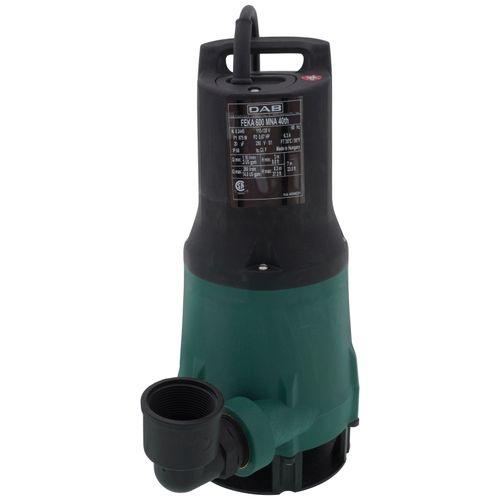

FEKA 600 MNA Multi-Purpose Submersible Sewage Pump (115V, 1/2 HP)

Feka 600 is a submersible pump suitable for draining and lifting light or gray wastewater and rainwater in domestic and residential environments, suitable for fixed or mobile installations. The pump has been redesigned on the occasion of the forty years of production, making them even more reliable, resistant and ergonomic to use.

CONSTRUCTION FEATURES OF THE PUMP

• Technopolymer pump body and suction grille. Triple ring seal in oil bath.

CONSTRUCTION FEATURES OF THE MOTOR

• Continuous duty asynchronous submersible motor. Stator inserted in a hermetic stainless steel casing and rotor mounted on oversized ball bearings.
• Thermal protection incorporated in all single-phase versions. Motor in AISI 304 stainless steel and shaft in AISI 431 steel for greater resistance to corrosive attacks.

TECHNICAL DATA

• Flow rate minimum and maximum: from 0.3 to 61 gpm ( 1 to 233 l/min )
• Head up to:27 ft ( 8.3 m)
• Maximum immersion depth: 23 ft ( 7 m )
• Type of pumped liquid:wastewater and rainwater
• Free passage:1" ( 25 mm )
• Minimum intake level: 1.5" ( 38 mm)
• Supported liquid temperature min. and max.:
  • for domestic use from 32 °F to 95 °F ( 0 °C to +35 °C )
  • for other uses from 32 °F to 122 °F ( 0 °C to +50 °C )
• Class of protection: IP 68
• Motor insulation class: F
• Impeller construction material(s): technopolymer
• Single phase power input: 115 V 60 Hz
• Possible type of installation: fixed or portable in a vertical position

Certification:

• CSA-C22.2 No. 108-14 - Liquid Pumps
  UL Std. No. 778 6th Ed. - Motor Operated Water Pumps
