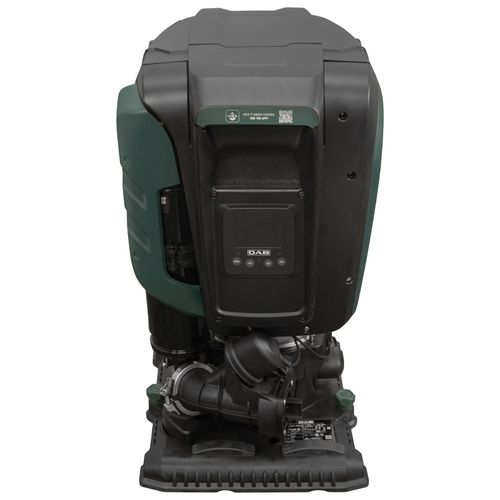

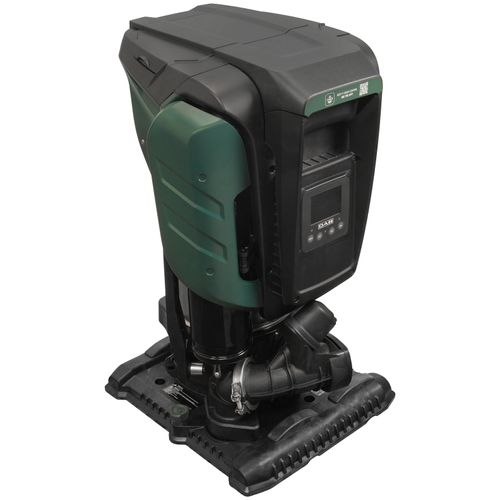

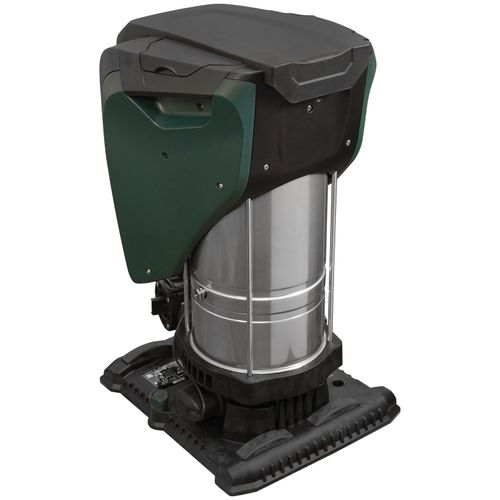

Esybox Max 60/120 M Electronic Booster Set (Single Phase, 208-240V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
'/%3E%3C/svg%3E){kind=small}
Lift Gate
Product Highlights
Description
Esybox Max is an integrated pumping system for water pressurization in commercial building service. It is composed of modular elements that allow different configurations: single, double, triple or quadruple system are possible, to cover the needs of medium/large condominiums and high buildings (even over 14 floors).
Each unit consists of the hydraulic connection base and the pumping unit which includes an electronic vertical multi-impeller pump, display, Wi-Fi module, pressure sensors, non-return valve on delivery and an expansion tank.
The innovative support base of the pumping unit and the wireless communication between the pumps make it possible to assemble the unit directly at the installation site (O.S.A. concept) even by one person.
The variable frequency drive keeps the pressure constant according to the request and also thanks to the water-cooled permanent magnet motor, it allows greater efficiency, silence and energy savings.
Compatible with the DConnect service.
Specs
| Voltage: | 240v 208V |
|---|---|
| Phase: | 1 |
| Horse Power: | 3.6 |
| Flow Rate (GPM): | 76 GPM |
| Max Head (Ft): | 370' |
| Product Type: | Pressure Boosting Pump |
