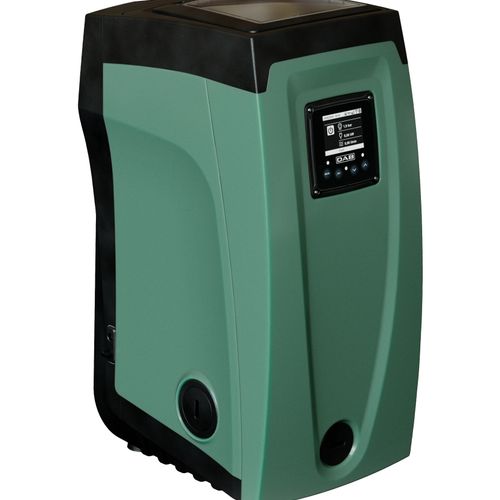

Esybox Automatic Booster System w/ Variable Frequency Drive (220-240V)

ESYBOX is an integrated electronic water pressure booster system for domestic and residential use. The ESYBOX inverter system provides the comfort of constant water pressure, while saving energy too.

ESYBOX is a comprehensive pressurization system developed by DAB for use in homes and residential settings. The great thing about ESYBOX is that it doesn't require any additional components during installation.

It combines several key components, including a multistage self-priming pump with electronic inverter control, flow and pressure sensors, a high-resolution LCD display, and an integrated 0.5-gallon expansion tank. One of the advantages of ESYBOX is its flexibility in installation. It can be mounted both vertically or horizontally, making it suitable for various spaces, even those with limited air circulation.

The system features a water-cooled motor, protective, sound absorbing ABS hull protection, vibration damping feet, and advanced electronics.

These advanced features contribute to its quiet operation, producing only 43 decibels of noise. Additionally, ESYBOX offers wireless capabilities, enabling easy creation of multi-pump pressurization units and seamless connectivity with other DAB devices.

In summary, ESYBOX is a reliable and compact pressurization system designed for domestic and residential applications. It simplifies installation by eliminating the need for additional components and offers various features for optimal performance, including quiet operation and wireless connectivity options.

Product Features

• ESYBOX comprises a self-priming, multi-stage pump with electronic inverter management, pressure and flow sensors, adjustable, high-resolution LCD display and an integrated 0.5 gallon expansion tank.
• Can be installed either vertically or horizontally, in closed spaces without high level of air exchange. The accessories (esywall, esydock, esytwin, esytank) permit several installation possibilities.
• The water-cooled motor, the protective and sound damping ABS hull, the anti-vibration feet and its electronics make this compact product very quiet (45dB under normal use).
• The wireless system enables the creation of other pressurization groups able to connect with other DAB devices (eg, esylink).

TECHNICAL DATA

• Operating range:capacity up to 32 gpm; head up to 210 ft.
• Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, un-crystallized and chemically neutral.
• Liquid temperature range:
  • from 32°F to +95°F for domestic use
  • from 32°F to +104°C for other uses
• Maximum suction depth: 26 ft
• Maximum ambient temperature:+102°F
• Maximum withstandable pressure:118 psi (8 bar / 800 kPa)
• Motor protection rating: IPX4
• Insulation class: F
• Installation: Horizontal or vertical fixed position
• Power Supply: 230v, 50-60Hz
