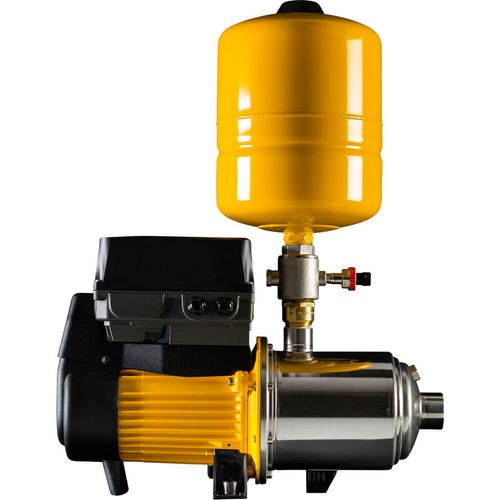

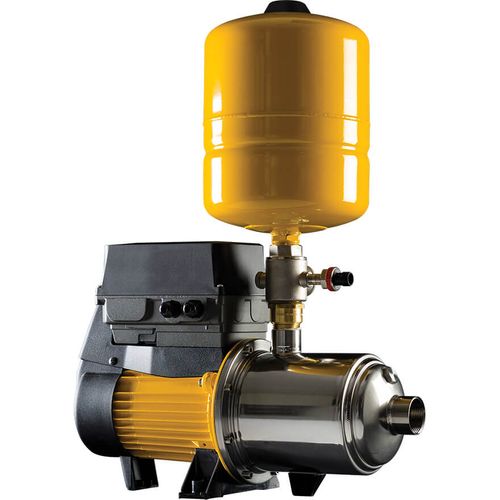

DynaDrive Constant Pressure System w/ Max Flow Up To 12 GPM

Davey DynaDrive is our latest all-in-one home pressure system to solve water pressure issues. As a constant pressure pump, the variable speed drive maintains water pressure at a fixed point regardless of an increase or decrease in water demand for your household.

Davey DynaDrive has been certified and tested to comply with the requirements of the UL778 standard. The UL778 standard covers submersible and non-submersible motor-operated pumps intended to be used in ordinary locations in accordance with the National Electrical Code, NFPA 70.

Product Features

• Stainless-steel impellers with high efficiency impeller profile and thick self-centering impeller neck rings for: High efficiency, Reduced power consumption, Low noise output
• Air purging valve and stage porting: Easier priming, Less susceptible to air leaks, Improved dependability
• Impellers mounted directly on extended motor shaft: Maximize performance per stage, High efficiency, Long motor and pump life, Increased wear resistance
• Pump casing assembly attached to motor bracket at 8 points with o-ring seal: Complete stainless casing, Better sealing, Longer service life
• Davey built, totally enclosed fan cooled (TFEC) electric motor: Sealed and greased for life motor bearings, Oversized drive bearing, Longer life, Easy service, Economical and quiet running

Product Specifications

• Max. flow rate @ 300kPa (43psi): 45L/min (12 US gallons)
• Max. flow rate @ 400kPa (58psi): 18L/min (5 US gallons)
