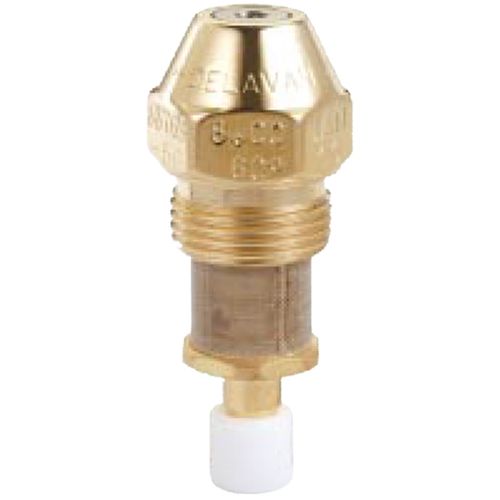

The Delavan Variflo nozzle is a pressure-atomizing nozzle, which provides discharge rate variations without changing nozzles. This is accomplished through the bypass principle.
With constant inlet supply pressure and the by-pass (return line) closed, the nozzle operates as a simplex atomizing nozzle. For a reduced discharge flow, the bypass line is opened and part of the fuel is allowed to return to the tank. The advantage is reduced flow without deterioration of the spray quality.
| Type: | Variflo |
|---|---|
| Gallons Per Hour: | 12 |
| Angle: | 60° |
