$182.09 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
277/480V
200 Amps
10 Year Limited Warranty
Description
–

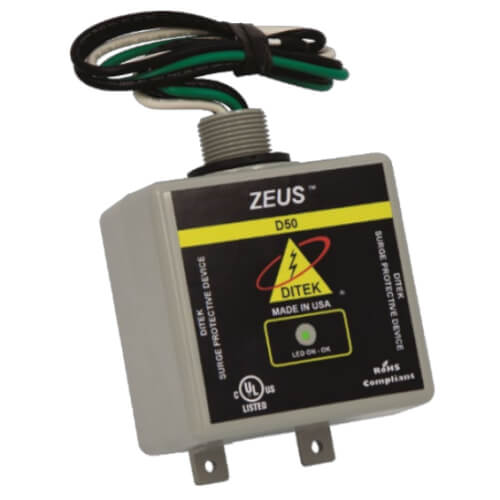

DITEK's D50 Industrial Surge Protectors are designed to provide protection to AC power systems in the most demanding environments. The D50 Series incorporates individually fused components for maximum performance and protection. DITEK's D50 industrial AC power surge protection devices are recommended for electrical panels rated at 200A or less. The D50-277/4803Y protects 277/480VAC three phase wye panels.
Product Features:
Product Features:
- 50,000 Amp surge current rating ensures long service life
- Compact size enables close mounting to protected panel, minimizing wire length and maximizing performance
- Diagnostic LED indicates system power and SPD function
- SCCR: 100,000A
- Operating Frequency: 50/60Hz
- Connection Method: 3/4" NPT Male; 30-inch 12 AWG Leads
- Housing: NEMA 4X Polycarbonate
- Operating Temperature: -31°F to 104°F
- Maximum Humidity: 95% non-condensing
- Dimensions: 4.63" L X 3.80" W x 2.62" H
- Weight: 1.2 lbs
- Certifications: UL1449 4th Edition; CSA C22.2 No. 269.1-14
- SPD Type: Type 1
Specs
–
| Product Type: | Surge Protector |
|---|---|
| Voltage: | 277/480V |
| Operating Temp Range: | -31°F to 104°F |
| Phase: | 3 |
| Enclosure Type: | NEMA-4X |
| Amperage: | 200 |
| Warranty: | 10 Year Limited |
