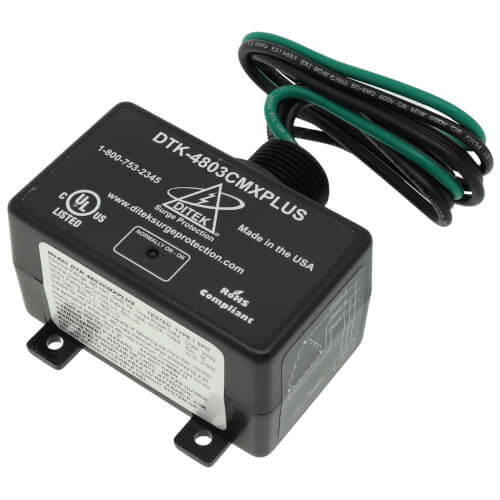

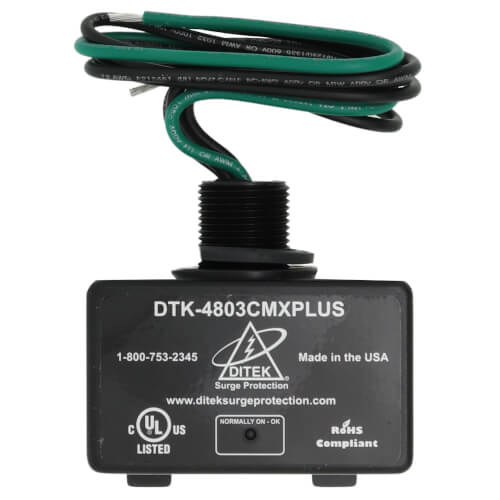

3 Phase Surge Protective Device (480V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$65.00 each
In Stock
Get 31 Wed, Sep 27
More Available
Order by today, receive Wednesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
480V
10 Year Limited Warranty
Description
–
DITEK's DTK-CMXPLUS Series of durable, cost-effective surge protective devices are used in a wide range of applications. These compact parallel-mount SPD's are available for 240V, 480V and 600V, 3-phase systems; and are the best choice for effective, performance driven surge protection. The DTK-4803CMXPLUS offers 480VAC three phase delta surge protection.
Product Features:
Product Features:
- NEMA 4X enclosure allows for use in harsh environments
- 75,000 Amp Total Surge Current Rating
- Diagnostic LED indicates system power and SPD function
- UL1449 Listed Type 1 SPD
- Surge Current Rating: 75,000A
- SCCR: 100,000A
- Nominal Discharge Current Rating (In): 10kA
- Connection Method: 3/4" NPT Male, 18-inch 12 AWG Leads
- Housing: NEMA 4X Polycarbonate
- Operating Temperature: -31°F to 176°F
- Maximum Humidity: 95% non-condensing
- Dimensions: 3.5" L x 1.89" W x 3.4" H
- Weight: 0.55 lbs
- Certifications: UL1449 4th Edition, CSA C22.2 No. 269.1-17
- SPD Type: Type 1
Specs
–
| Product Type: | Surge Protector |
|---|---|
| Voltage: | 480V |
| Operating Temp Range: | -31°F to 176°F |
| Phase: | 3 |
| Enclosure Type: | NEMA-4X |
| Max Surge Current: | 10kA |
| Warranty: | 10 Year Limited |
