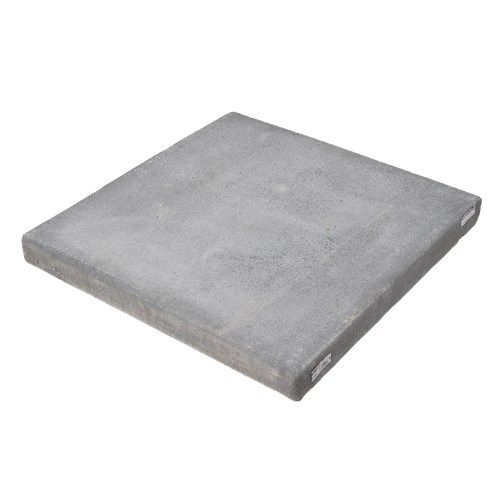

3" UltraLite Mini-Split and Equipment Pad, 30" x 30"

The UltraLite UC3030-3CA is an earthquake code compliant lightweight concrete composite equipment pad designed to support HVAC condensers and heat pumps and other outdoor equipment. Required nearly exclusively in Southern California, the UltraLite pad is available for compliance with strict attachment provisions detailed in earthquake prone local building codes. Only available in most of Southern California and portions of Washington and Oregon.

Features:

• Earthquake code compliant for use in the relevant West Coast locations
• Extremely lightweight, the UltraLite pad is a concrete pad at the weight of plastic, about 2.5 lbs. per square foot
• Concrete outer skin and EPS foam core provide flexibility and vibration dampening
• Flat bottom design provides excellent resistance to sinking and settling
• The textured surface of the UltraLite prevents equipment sliding and allows water drainage
• Extensive selection of sizes available
• Drillable for securing unit (1/4" x 1-1/4" Tapcon recommended), either side or top surface
• Freeze/thaw, UV, chemical & flame-resistant for long-term life outdoors
• Tested per ASTM D2299 with refrigerants, synthetic canine urine, compressor oil or salt solution.
