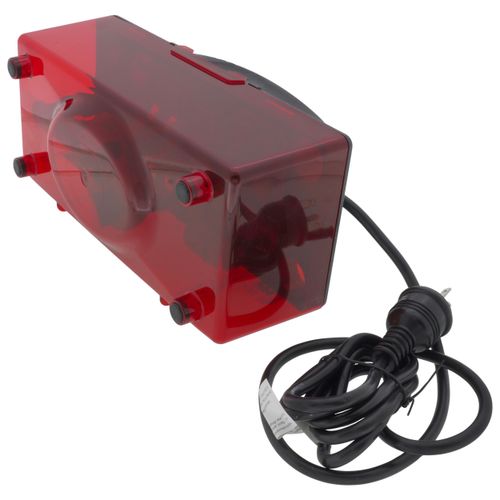

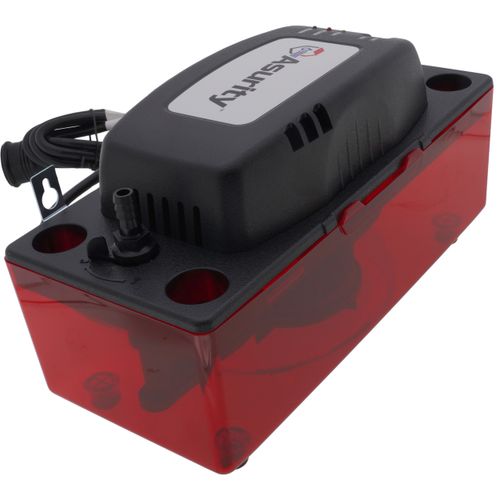

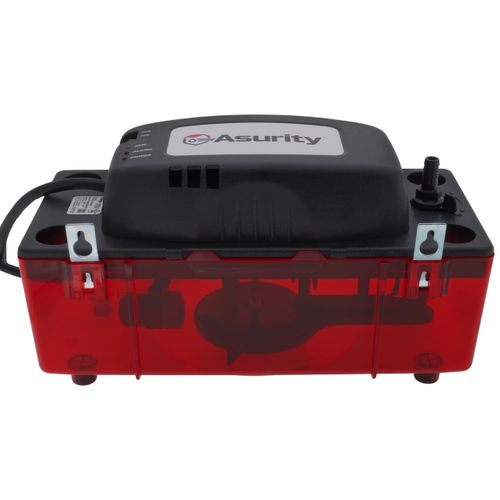

Ultra Series Condensate Pump (230V, 22' Lift)

The Asurity® ULTRACP-22T-230 Condensate Pump is a 230 volt pump with 22 ft of lift. It comes with innovative features such as a translucent tank for easy & fast inspection, vibration dampening feet & motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve, and detailed installation instructions. Two 1/4in. quick connect terminals provide the installer fast and easy connections to the built-in overflow switch to shut-down the system and prevent flooding, an important safety feature.

Features

• 22 ft maximum lift height
• LED Indicators Confirm Pump Status
• Built-in Safety Overflow Switch
• Reversible deck for more installation options
• Removable Check Valve for Easy Cleaning
• Suitable for condensate up to 160° F
• Vibration dampening feet and motor mounts minimize sound
• 4 inlet holes

Specifications

• Volts: 230
• Application: General Purpose Condensate Pump|HVAC/R
• Hertz: 60
• Horsepower: 1/30
• UL Listed: Yes
• Amps: 1
• Discharge Line (In.): 3/8
• Floatless Sensor: No
• GPH (Gal./Hr.) @ 10 Ft. Lift: 108
• High Level Switch: Yes
• Input Type: NEMA 6-15 Plug
• Max Condensate Temp. (Degrees): 160°F
• Max Flow Rate (GPH): 132
• Max Lift Height (Ft.): 22
• No. of Inlets: 4
• Self-Cleaning: No
• Tank Capacity (Gal.): 1/2
• Variable Speed and Lift: No
• Ducted or Ductless: Ducted
• Color Code: N/A
