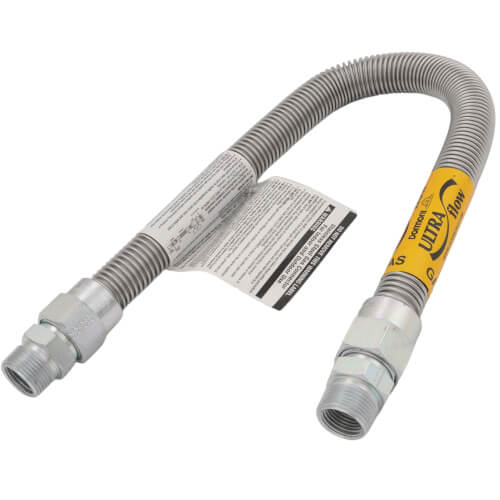

Model 40-4141-24 3/4" ID (1" OD) High BTU Stainless Steel Gas Connector 3/4" MIP x 3/4" MIP (24" Length)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$41.14 each
In Stock
Get 68 Tomorrow, Jun 18
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Stainless Steel
3/4"
1"
24" Length
FIP x MIP Connection
3/4"
Description
–
Model 40-4141-24 3/4" ID (1" OD) High BTU Stainless Steel Gas Connector 3/4" MIP x 3/4" MIP (24" Length)
This 1 inch OD, 3/4 inch ID, durable, corrosion-resistant stainless steel gas connector is configured with 3/4 inch MIP x 3/4 inch MIP adapters and is 24 inches in length. Designed with safety in mind, this CSA approved gas connector is commonly used for the installation of appliances requiring a high BTU.
Product Features
- Tubing Annealed, 304 stainless steel (ASTM A240)
- Flare nuts - Brass or plated steel
- Adapters - Brass or plated steel
- Approved for indoor and outdoor use
- Operating temperature with adapters: -40 degrees Fahrenheit to 150 degrees Fahrenheit
- 100 percent leak tested
- When installing a new appliance or when an existing appliance is moved to a new location a NEW gas connector must be used per manufacturer's installation instructions and per product standards ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27.
- Avoid repeated bending, flexing, or extreme vibration. Do not use on portable gas generators due to excessive vibration
- Not suitable for moveable installations. Not NSF certified.
- Designed for high BTU demand
- Exclusive No-Neck design increases flexibility
- CSA design-certified Durable 304 stainless steel tubing
- More corrugations per inch increase flexibility and extend service life
Applications:
- Boilers
- Gas Meters
- Furnaces
- Commercial
Water Heaters:
- Gas packs/Rooftop HVAC units
- Tankless Water Heater
- Stationary Standby Gas Generators
- Specifically designed for application with a significant BTU requirement. Can supply up to 1.5 million BTU (natural gas) or 2.4 million (propane), depending on length.
- Eliminates the need for pipe nipples, 90's and elbows.
- Pre-fabricated gas connector means no field threading, cutting or assembly of CSST fitting and tubing.
- Available with hot-dipped PVC coating with antimicrobial agent, SafetyShield yellow coating, or Stainless Steel.
Specs
–
| Connection Type: | FIP x MIP |
|---|---|
| Length (Inches): | 24" |
| LP Capacity (BTU): | 344000 |
| Type: | Corrugated |
| NG Capacity (BTU): | 215000 |
| Size: | 3/4" |
| ID: | 3/4" |
| OD: | 1" |
| Material: | Stainless Steel |
| Coating: | Uncoated |
| Application: | Heating High BTU |
