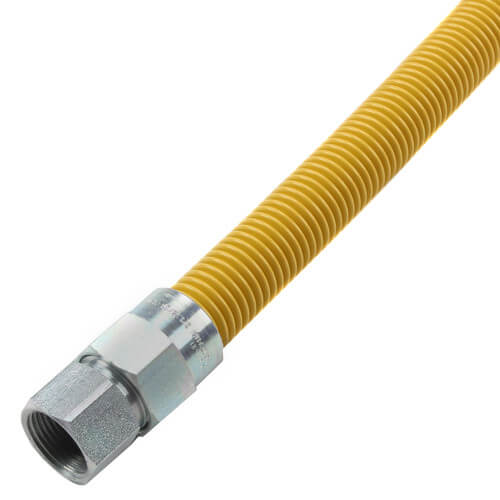

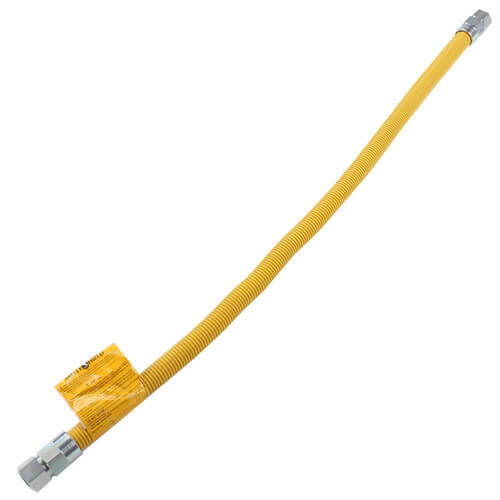

Model 40C-4242-36 3/4" ID (1" OD) High BTU Coated Stainless Steel Gas Connector 3/4" FIP (36" Length)
Hover image to zoom

Model 40C-4242-36 3/4" ID (1" OD) High BTU Coated Stainless Steel Gas Connector 3/4" FIP (36" Length)

Brand:
Dormont
SKU:
0240951
Rating:
(0)
Q&A:
(0)
Model 40C-4242-36 3/4" ID (1" OD) High BTU Coated Stainless Steel Gas Connector 3/4" FIP (36" Length)
Hover image to zoom
$55.17 each
In Stock
In Stock
Get 6 Fri, Apr 26
Fast Track Logo
Order by 6PM, receive Friday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

Material icon
Stainless Steel
ID icon
3/4"
OD icon
1"
Length (Inches) icon
36" Length
Connection Type icon
FNPT x FNPT Connection
Size icon
3/4"

Description

Model 40C-4242-36 3/4" ID (1" OD) High BTU Coated Stainless Steel Gas Connector 3/4" FIP (36" Length)

This 1 inch OD, 3/4 inch ID, durable, corrosion resistant stainless steel gas connector is configured with 3/4 inch FIP x 3/4 inch FIP adapters and is 36 inches in length. Designed with safety in mind, this CSA approved gas connector is yellow coated. The yellow coating is an industry recognized color for gas lines and provides extra corrosion protection from accidental contact with harmful chemicals that may be found in household products. It is commonly used for the installation of appliances that have a high BTU requirement.

Features:
  • Tubing - Annealed, 304 stainless steel (ASTM A240)
  • Flare nuts - Brass or plated steel
  • Adapters - Brass or plated steel
  • Coating - Custom Formulated Polymer
  • Approved for indoor and outdoor use
  • Temperature rating with adapters: -40°F to 150°F
  • Temperature rating with valves: -40°F to 125°F
  • 100% Factory leak tested
  • When installing a new appliance or when an existing appliance is moved to a new location a NEW gas connector must be used per manufacturer’s installation instructions and per product standards ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27.
  • Not engineered for high temperature applications such as gas logs, fireplace inserts or free-standing fireplaces
  • Not suitable for moveable installations. Not NSF certified
  • Avoid repeated bending, flexing, or extreme vibration. Do not use on portable gas generators due to excessive vibration

Specs

Length (Inches):

36"

LP Capacity (BTU):

432800

Type:

Corrugated

NG Capacity (BTU):

270500

Connection Type:

FNPT x FNPT

Size:

3/4"

OD:

1"

ID:

3/4"

Coating:

Yellow Coated

Material:

Stainless Steel

Application:

Heating
