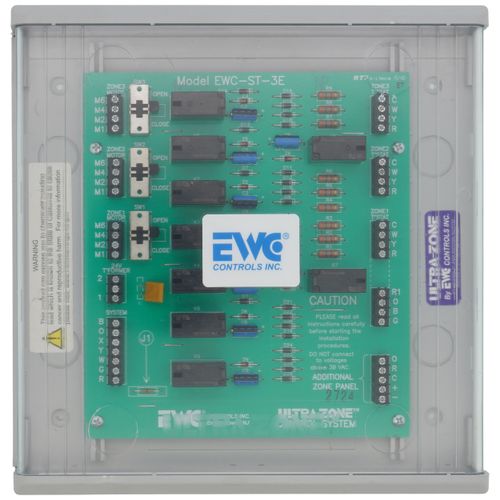

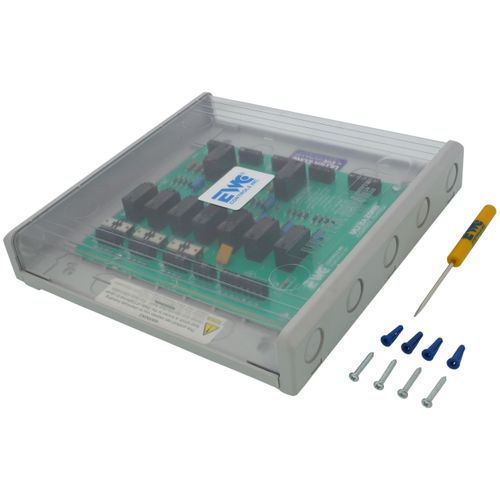

ST-3E Control Panel
Hover image to zoom
ST-3E Control Panel
Hover image to zoom
$187.05 each
In Stock
In Stock
Get 13 Mon, Jul 22
More Available
Fast Track Logo
Order by today, receive Monday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Number of Zones icon
3
Stages icon
1 Heat/1 Cool
Length (Inches) icon
10" Length
Width (Inches) icon
9" Width
Depth (Inches) icon
1-9/16" Depth
Voltage icon
24v

Description

Model ST series panels are for single stage heating and cooling with manual changeover. Zone 1 is the "master" zone which controls the heating and cooling mode and also the fan operation. The ST-2 is a 2 zone panel. Zone 2 will only operate in the same mode that the zone 1 thermostat is in. Each thermostat can turn the system "on" and "off ", but only in the same mode. It is recommended that zone 2 has no switching subbases for the thermostats. The ST panels can be used with mechanical or digital programmable thermostats that are non-power stealing.
Open-Close switches on the control panels near the damper terminal blocks allow for continuous air circulation. This switch controls the damper position when the heating and air conditioning system is at rest. The ST panels can be wired together to create larger zoning systems up to 6 zones.

Specs

Product Type:

Control Panel

Number of Zones:

3

Stages:

1 Heat/1 Cool

Changeover:

Manual

Length (Inches):

10"

Width (Inches):

9"

Depth (Inches):

1-9/16"

Voltage:

24v

VA Rating:

40

Hertz:

60
